Trục sau

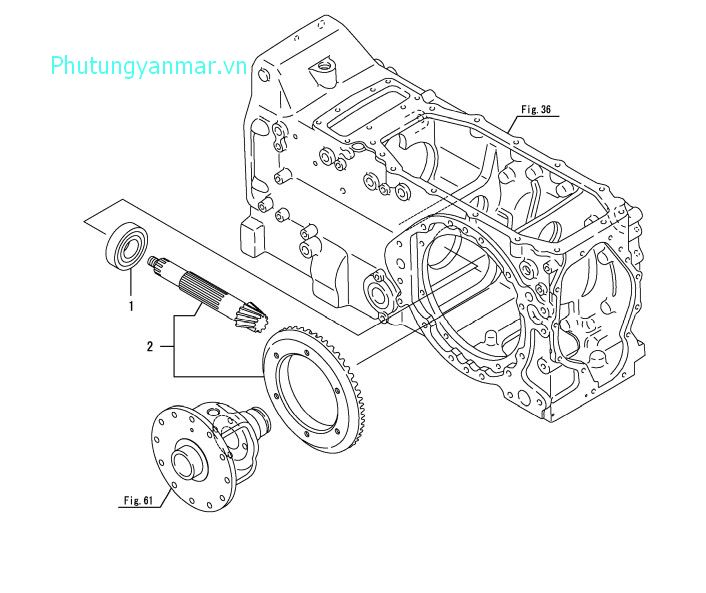

Vòng răng bánh đà

STT	Tên sản phẩm	Mã số	Giá bán	Đặt hàng
1	BEARING, 6307R SH2	198390-25790	414,000
2	GEARASSY, RING	198149-31400	14,040,000

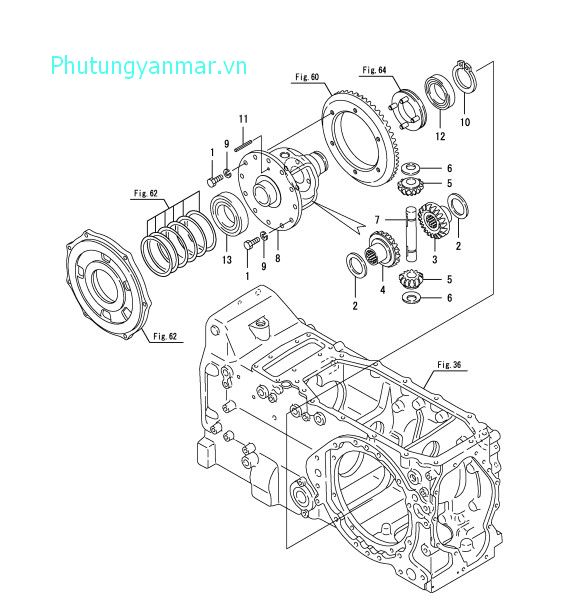

STT	Tên sản phẩm	Mã số	Giá bán
1	BOLT, M10X25	194066-13130	48,000
2	WASHER, DIFFERENTIAL	198320-31530	40,000
3	GEAR, DIFFERENTIAL	198320-31550	2,735,000
4	GEAR, DIFFERENTIAL	194320-31560	2,488,000
5	PINION, DIFFERENTIAL	198320-31570	860,000
6	WASHER, DIFFERENTIAL	198320-31630	46,000
7	SHAFT, DIFFERENTIAL	198320-31820	1,040,000
8	CASE, DIFFERENTIAL	198320-32111	8,100,000
9	WASHER, SPRING 10	22217-100000	16,000
010	RING, 50	22242-000500	47,000
011	PIN, SPRING 6.0X50	22351-060050	24,000
012	BEARING, BALL 6010	24101-060104V	161,000
013	BEARING, BALL 6211	24101-062114	525,000

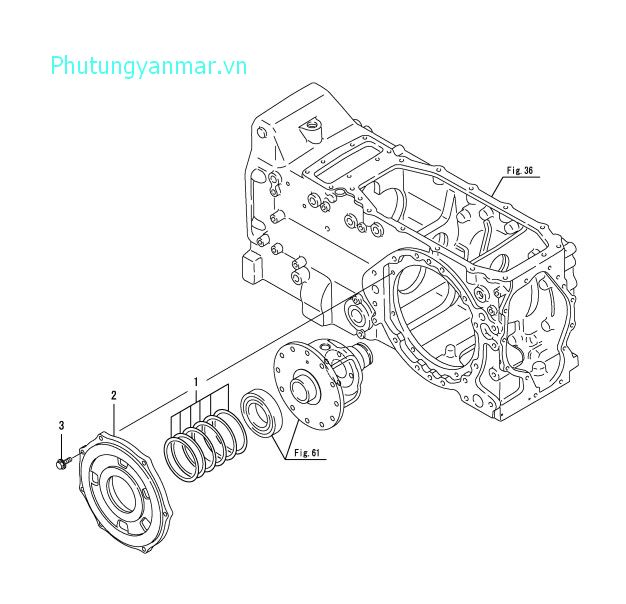

STT	Tên sản phẩm	Mã số	Giá bán
1	SHIM SET	794251-13910	247,000
2	CARRIER	198250-32310	3,534,000
2-1	CARRIER, DIFF.	1A7601-32310	1,257,000
3	BOLT, M8X 25 PLATED	26106-080252	20,000

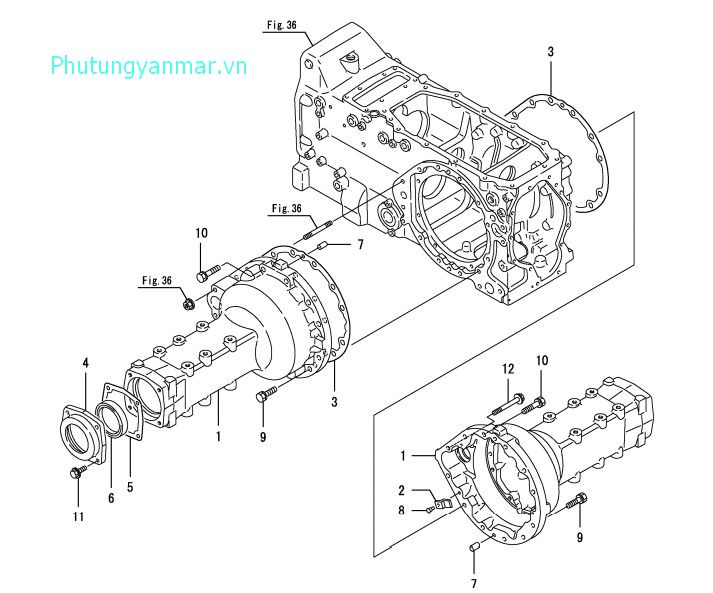

STT	Tên sản phẩm	Mã số	Giá bán
1	HOUSING, REARAXLE	198212-32611-X	10,605,000
2	PLATE, PUSH	194180-32640	40,000
3	PACKING, AXLE	198240-32640	260,000
4	CASE, OIL SEAL	194640-32650-3	1,449,000
5	GASKET, SEAL CASE	198320-32660	60,000
6	SEAL, QLNY7210016	198535-32660	789,000
7	PIN, PARALLEL M10X18	22312-100180	24,000
8	RIVET, 6.0X12	22635-600120	16,000
9	BOLT, M12X 40	26013-120402	33,000
010	BOLT, M12X 50	26013-120502	33,000
011	BOLT, M10X 30 PLATED	26106-100302	24,000
012	BOLT, M10X 85 PLATED	26106-100852	35,000

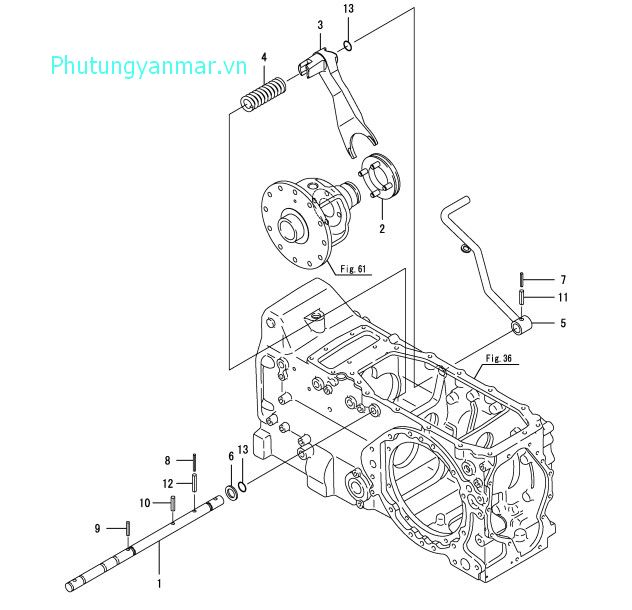

STT	Tên sản phẩm	Mã số	Giá bán
1	SHAFT, LOCK	198254-33110	550,000
2	SLIDER, DIFFERENTIAL	194464-33130	794,000
3	FORK, SHIFT	1A7350-33140	1,100,000
4	SPRING, RETURN	194150-33150	150,000
5	PEDAL, LOCK	198240-33151
6	SPACER, 20X32X3.2	194300-33200	52,000
7	PIN, SPRING 5.0X32	22351-050032	20,000
8	PIN, SPRING 5.0X40	22351-050040	15,000
9	PIN, SPRING 6.0X32	22351-060032	20,000
010	PIN, SPRING 8.0X32	22351-080032	24,000
011	PIN, SPRING 8.0X32	22351-080032	24,000
012	PIN, SPRING 8.0X40	22351-080040	28,000
013	O-RING, 1AP15.0	24311-000150	20,000

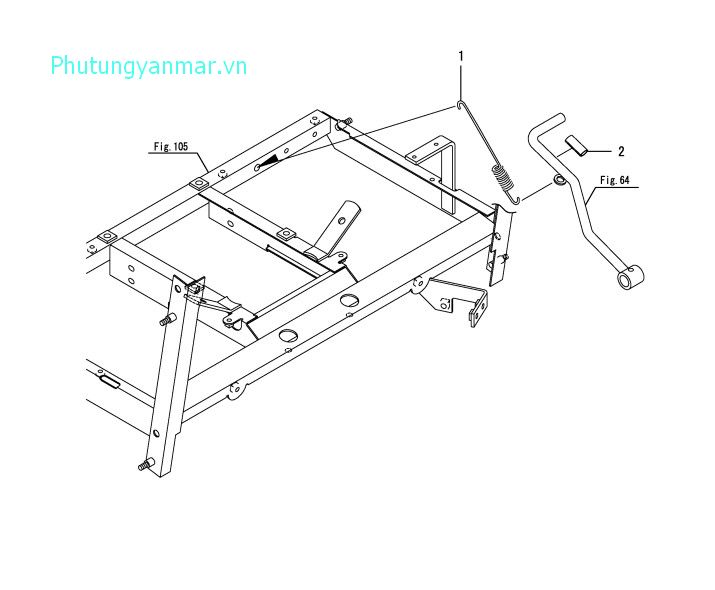

STT	Tên sản phẩm	Mã số	Giá bán	Đặt hàng
1	SPRING, PEDAL	1A7781-33170	22,000
2	PIPE, LEVER PROTECT	1A7781-33180	26,000

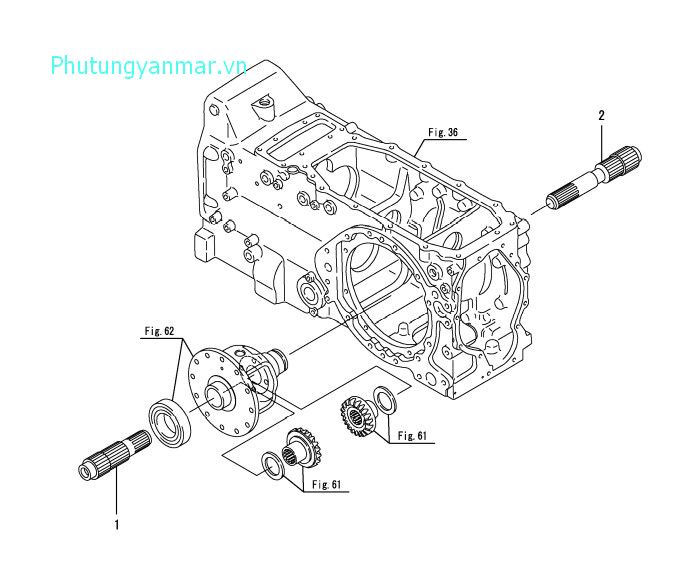

STT	Tên sản phẩm	Mã số	Giá bán	Đặt hàng
1	PINION, FINAL L	198320-33412	3,967,000
2	PINION, FINAL R	198320-33422	3,622,000

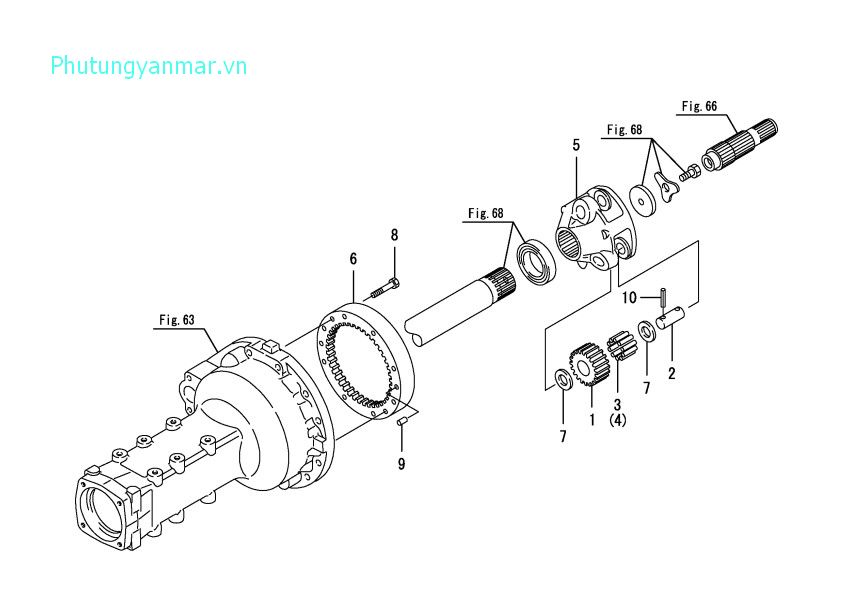

STT	Tên sản phẩm	Mã số	Giá bán
1	PINION, PLANETARY	198320-33540	2,030,000
2	SHAFT, PLANETARY	198320-33550	525,000
3	NEEDLE, 4.5X31.8	198320-33560	28,000
4	NEEDLE, 4.5X31.8	198320-33560	28,000
5	CARRIER, PLANETARY	198320-33570	4,514,000
6	GEAR, INTERNAL	198320-33610	10,140,000
7	WASHER, 26X42X1	198320-33620	72,000
8	BOLT, M10X55	198217-33650	23,000
9	PIN, PARALLEL M10X18	22312-100180	24,000
010	PIN, SPRING 8.0X40	22351-080040	28,000

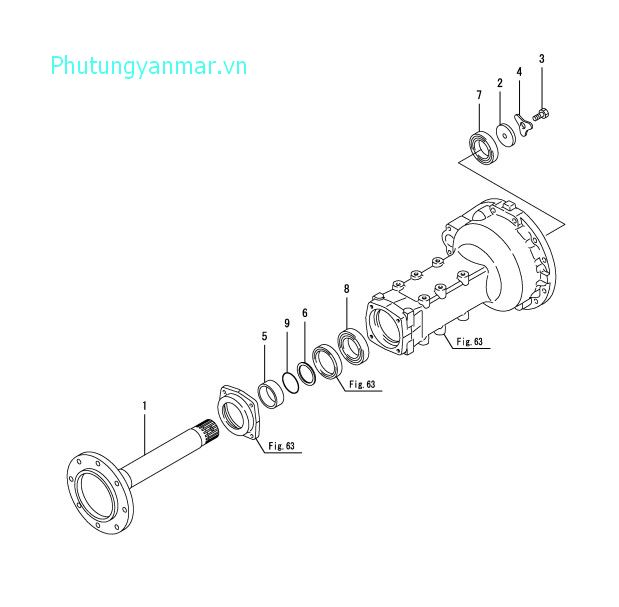

STT	Tên sản phẩm	Mã số	Giá bán
1	SHAFT, REARAXLE	1A7781-34130	9,116,000
2	WASHER, 13X64X9	194640-34130	179,000
3	BOLT, M12X30	194640-34140	105,000
4	WASHER, THRUST	194640-34150	245,000
5	COLLAR, 60X72X26	198535-34360	980,000
6	SPACER, O-RING	194145-34390	65,000
7	BEARING, BALL 6011	24101-060114V	219,000
8	BEARING, BALL 6212	24101-062124V	420,000
9	O-RING, 1AG60.0	24321-000600	40,000

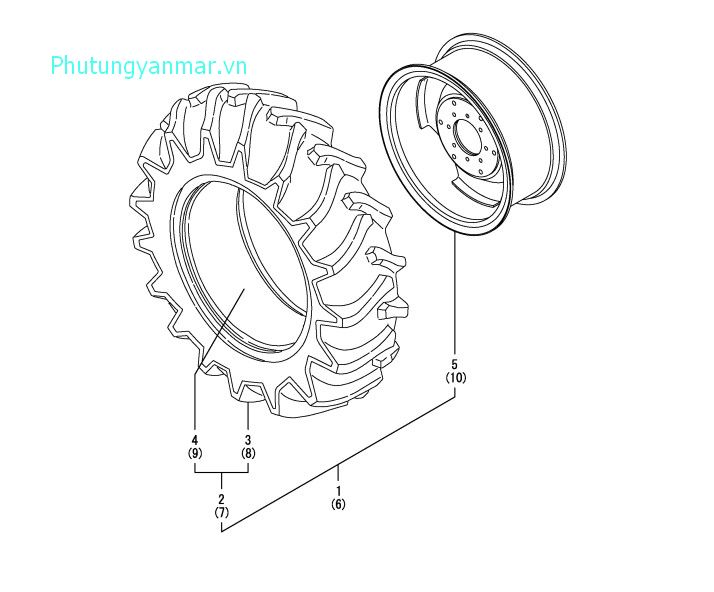

STT	Tên sản phẩm	Mã số	Giá bán
1	TIRE&WHEEL KIT, L.H.	1A7781-34550	24,178,000
2	TIREASSY, 13.6-26-6	1A7781-34630	15,906,000
3	TIRE, 13.6-26-6	1A7781-34640	17,158,000
4	TUBE, 13.6-26	1A7780-34740	3,027,000
5	WHEELASSY, W11-26W	1A7781-34750	7,823,000
6	TIRE&WHEEL KIT, R.H.	1A7781-34560	24,178,000
7	TIREASSY, 13.6-26-6	1A7781-34630	15,906,000
8	TIRE, 13.6-26-6	1A7781-34640	17,158,000
9	TUBE, 13.6-26	1A7780-34740	3,027,000
010	WHEELASSY, W11-26W	1A7781-34750	7,823,000

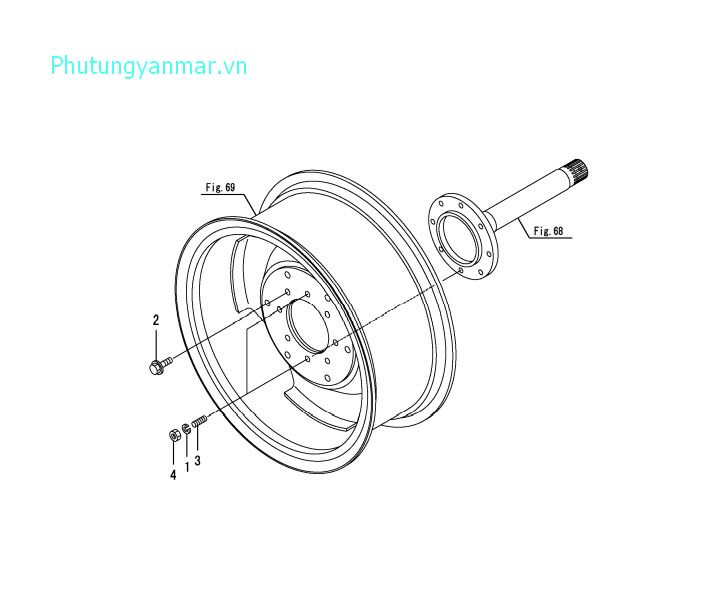

STT	Tên sản phẩm	Mã số	Giá bán
1	WASHER, 14	194279-14220	50,000
2	BOLT, M14X45	198146-34120	40,000
3	STUD, M14X40	198282-34160	419,000
4	NUT, M14	198200-34190	86,000

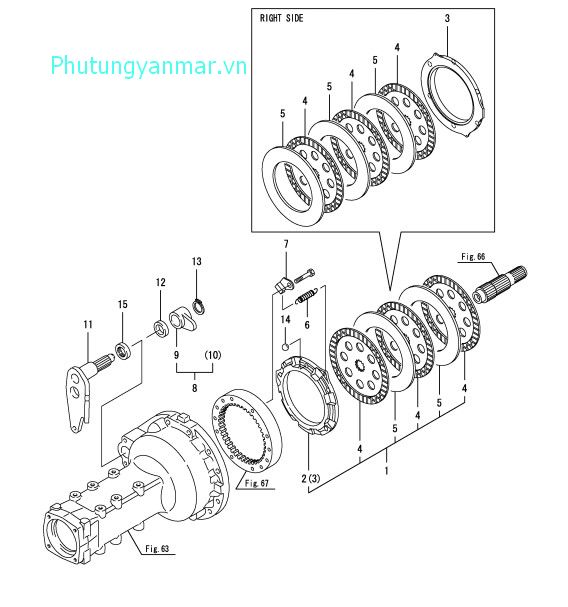

STT	Tên sản phẩm	Mã số	Giá bán
1	BRAKEASSY	198320-36200	15,050,000
1-1	BRAKEASSY	1A7601-36200	15,050,000
2	ACTUATOR	198240-36310	4,690,000
2-1	ACTUATOR, L	1A7601-36310	2,310,000
3	ACTUATOR	198240-36320	3,361,000
3-1	ACTUATOR, R	1A7601-36320	2,310,000
4	PLATE, FRICTION 226	198240-36351	1,750,000
4-1	PLATE, FRICTION 226	1A7601-36350	1,680,000
5	PLATE, STEEL 3.2	198240-36520	1,534,000
5-1	PLATE, STEEL 3.2	1A8275-36520	1,048,000
6	SPRING, ACTUATOR	194205-36320	44,000
7	HOOK, RETURN SPRING	198240-36380	72,000
8	LEVERASSY, CAM	198240-36700	2,976,000
9	CAMSHAFT, BRAKE L	198240-36710	876,000
010	CAMSHAFT, BRAKE R	198240-36720	876,000
011	SHAFT, CAM LEVER	198240-36730-2	1,365,000
012	SLEEVE, CAM LEVER	198320-36790	385,000
013	RING, 29	22242-000290	10,000
014	BALL, STEEL 9/16	24190-180001	24,000
015	SEAL, OIL TC304208	24421-304208	45,000

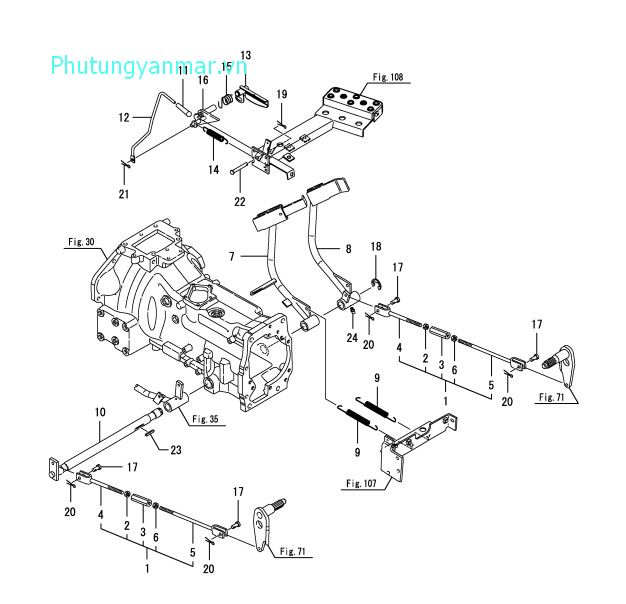

STT	Tên sản phẩm	Mã số	Giá bán
1	RODASSY, BRAKE	794525-37000	711,000
2	NUT, M10 L	194150-22480	35,000
3	TURNBUCKLE	194130-37730	150,000
4	ROD, BRAKE L	194310-37741	107,000
5	ROD, BRAKE R	194134-37771	153,000
6	NUT, M10	26716-100002	20,000
7	PEDAL, L.H. BRAKE	1A7781-37420
8	PEDAL, R.H. BRAKE	1A7781-37470	1,154,000
9	SPRING, RETURN	198240-37510	170,000
010	SHAFT, BRAKE PEDAL	198240-37550-1	1,330,000
011	KNOB, PARKING BRAKE	198253-37610	80,000
012	ROD, PARKING	1A7781-37640	114,000
013	LEVER, BRAKE LOCK	198254-37660	770,000
014	SPRING, RETURN	198220-37700	13,000
015	SPRING,	1A7781-37720	14,000
016	LEVER, PARKING B	198240-37850	2,976,000
017	PIN, 8X24	198220-37900	52,000
018	RING, E-19	22272-000190	30,000
019	PIN, COTTER 2.0X30	22417-200300	16,000
020	PIN, COTTER 2.5X30	22417-250300	8,000
021	PIN, COTTER 2.5X30	22417-250300	8,000
022	PIN, H10X 70	22487-100700	68,000
023	KEY, 7X 40	22512-070400	40,000
024	NIPPLE, GREASE M6F	24761-010000	61,000

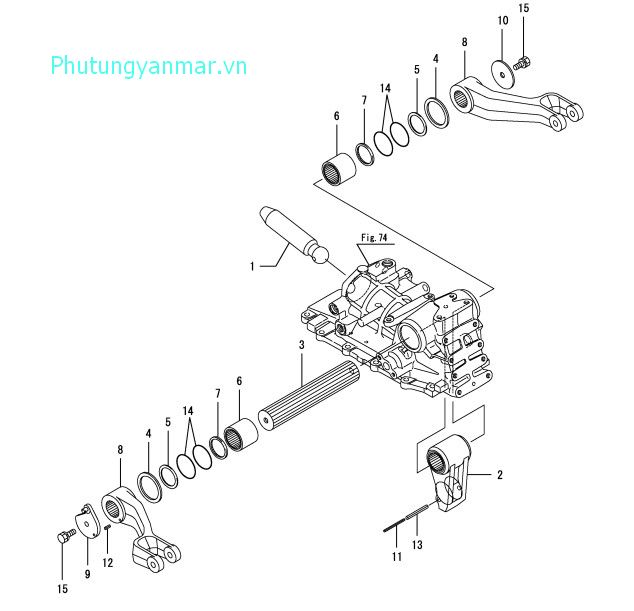

STT	Tên sản phẩm	Mã số	Giá bán
1	ROD, PISTON	194180-43410	2,065,000
2	CRANK, LIFT	198215-44110	8,786,000
3	SHAFT, LIFTING	198133-44210	5,705,000
4	WASHER, 65X82X2	1A7640-44230	148,000
5	PLATE, 50X64X2	1A7640-44240	86,000
6	SLEEVE, LIFT SHAFT	1A7780-44250	1,078,000
7	SEAL, SPLINE	194640-44261	157,000
8	ARM, LIFT	198133-44410-2	8,794,000
8-1	ARM, LIFT	198133-44411-2	8,794,000
9	PLATE, FEEDBACK	1A7780-44510-2	630,000
010	RETAINER, SHAFT	194640-44540-3	279,000
011	PIN, SPRING 5.0X70	22351-050070	24,000
012	PIN, SPRING 6.0X16	22351-060016	20,000
013	PIN, SPRING 8.0X70	22351-080070	35,000
014	O-RING, 1AG65.0	24321-000650	44,000
015	BOLT, M12X 35	26013-120352	33,000
