STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
---|---|---|---|---|

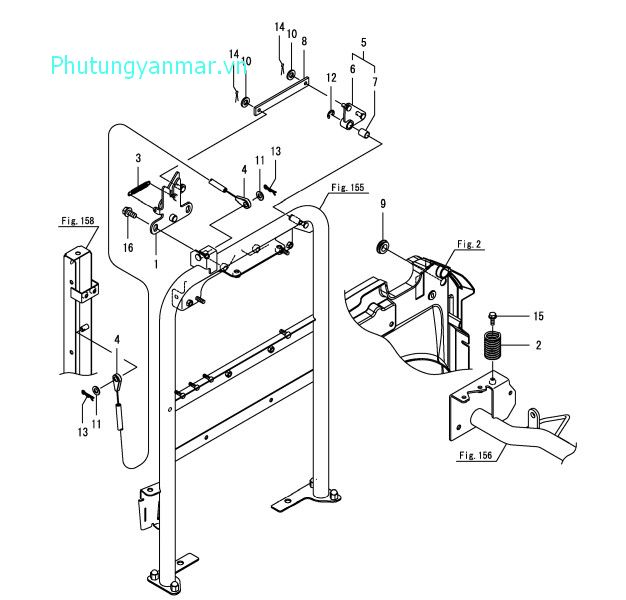

1 | LOCK ASSY, BONNET | 1A8470-61301 | 876,000 | |
2 | SPRING, BONNET | 1A8252-61350 | 33,000 | |
3 | SPRING, LOCK RETURN | 198230-61960 | 120,000 | |
4 | WIRE ASSY, BONNET | 1A8470-61991 | 490,000 | |
4-1 | WIRE ASSY, BONNET | 1A8252-61970 | ||
5 | ARM UNIT, HOOD LOCK | 1A8252-66200 | 129,000 | |
6 | ARM ASSY, HOOD LOCK | 1A8252-66210 | 86,000 | |
7 | BUSH, 10X15 | 24550-010150 | 224,000 | |
8 | PLATE, LINK | 1A8252-66280 | 22,000 | |
9 | GROMMET, 18 | 197810-83220 | 72,000 | |
010 | WASHER, 6 | 22137-060001 | 11,000 | |
011 | WASHER, 8 | 22137-080001 | 11,000 | |
012 | RING, E- 8 | 22272-000080 | 16,000 | |
013 | PIN, SNAP 8 | 22372-080000 | 8,000 | |
014 | PIN, COTTER 1.6X16 | 22417-160160 | 16,000 | |
015 | BOLT, M6X 16 PLATED | 26106-060162 | 16,000 | |
016 | BOLT, M8X 16 PLATED | 26106-080162 | 16,000 |
STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
---|---|---|---|---|

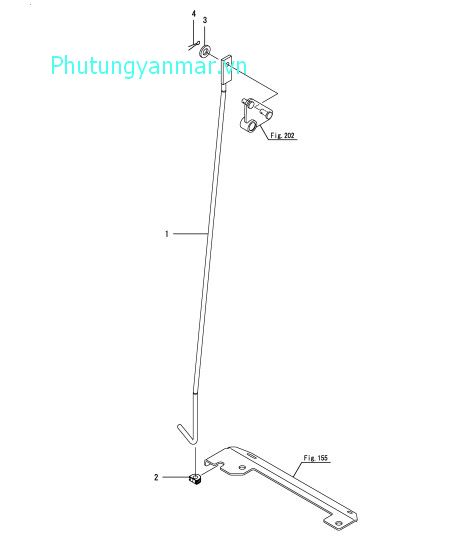

1 | ROD ASSY, HOOD LOCK | 1A8252-66300 | 76,000 | |
2 | GROMMET, HOOD LOCK | 1A8252-66350 | 11,000 | |
3 | WASHER, 6 | 22137-060001 | 11,000 | |
4 | PIN, COTTER 1.6X16 | 22417-160160 | 16,000 |
STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
---|---|---|---|---|

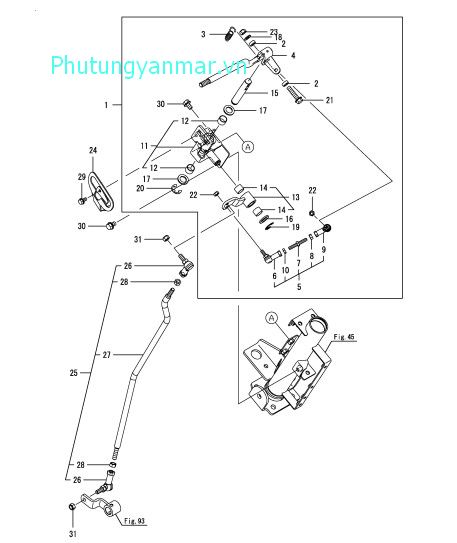

1 | LEVER UNIT,REVERSER | 1A8252-67300 | 1,874,000 | |
2 | COLLAR, 8X14X5.3 | 1A8115-27030 | 47,000 | |
3 | SPRING, RETURN | 1A8115-27240 | 80,000 | |
4 | LEVER ASSY, REVERSE | 1A8252-67370 | 172,000 | |
5 | ROD ASSY | 1A8400-67380 | 1,225,000 | |
6 | BALL, LINK BL6D | 1C6720-47610 | 186,000 | |
7 | BOLT, 6X44 | 1C6720-47621 | 266,000 | |
8 | NUT, 6 L | 1E3080-47660 | 48,000 | |
9 | BALL, LINK BL6DL | 1C6720-47690 | 525,000 | |
010 | NUT, LOCK M6 | 26756-060002 | 16,000 | |
011 | BRACKET ASSY | 1A8252-67410 | 243,000 | |
012 | BUSH, 15X12 | 24550-015120 | 65,000 | |
013 | ARM ASSY | 1A8252-67430 | 187,000 | |
014 | BUSH, 15X12 | 24550-015120 | 65,000 | |
015 | SHAFT | 1A8252-69350 | 86,000 | |
016 | WASHER, 14 | 22117-140001 | 11,000 | |
017 | WASHER, 14 | 22117-140001 | 11,000 | |
018 | WASHER, 8 | 22137-080001 | 11,000 | |
019 | RING, E-12 | 22272-000120 | 8,000 | |
020 | RING, E-12 | 22272-000120 | 8,000 | |
021 | BOLT, M8X 35 PLATED | 26106-080352 | 20,000 | |
022 | NUT, M6 | 26346-060002 | 44,000 | |
023 | NUT, M8 | 26346-080002 | 57,000 | |
024 | SUPPORT, RVRSR LEVER | 1A8252-67390 | 115,000 | |
025 | ROD UNIT, REVERSER | 1A8252-67500 | 975,000 | |
026 | BALL, LINK BL8D | 1E4760-43090 / 1C6980-47310( Mã thay thế) | 487,000 | |
027 | ROD | 1A8252-67520 | 160,000 | |
028 | NUT, M8 | 26716-080002 | 10,000 | |
029 | BOLT, M6X 12 PLATED | 26106-060122 | 14,000 | |
030 | BOLT, M8X 16 PLATED | 26106-080162 | 16,000 | |
031 | NUT, M8 | 26346-080002 | 57,000 |
STT | Tên sản phẩm | Mã số | Giá bán | Đặt hàng |
---|---|---|---|---|

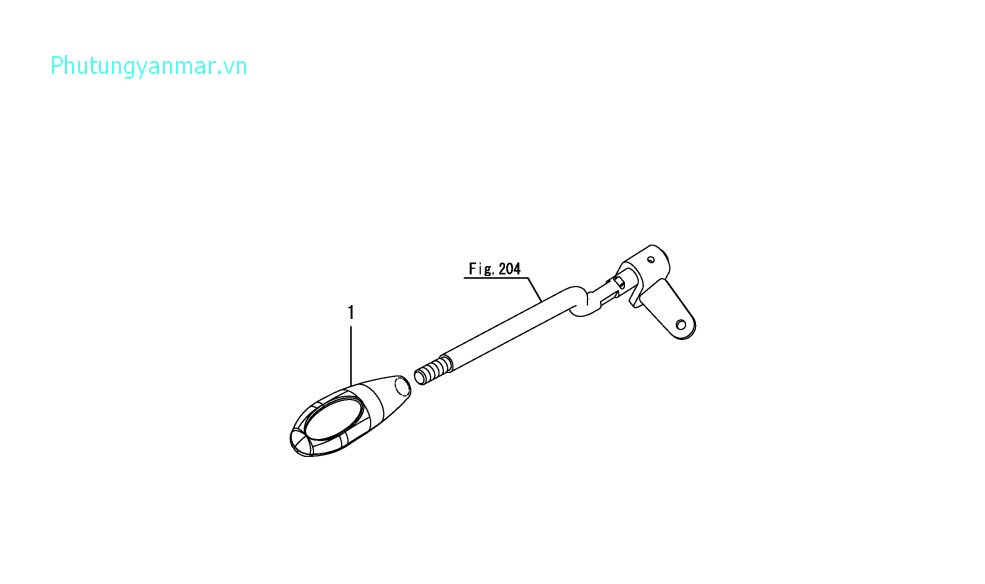

1 | KNOB, REVERSER LEVER | 1A8252-67600 | 65,000 |
