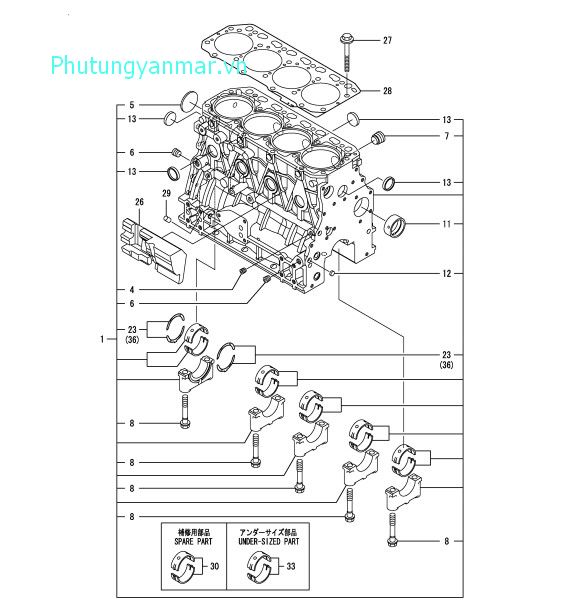

Khối xilanh

Khối xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BLOCKASSY, CYLINDER 729659-01570 91,001,000
4 PLUG, PT1/8 124060-01050 50,000
5 PLUG, 50 129001-01250 72,000
6 PLUG, PT1/4 124160-01910 40,000
7 PLUG, NPTF1 171051-01921 186,000
8 BOLT, METAL CAP 129150-02020 172,000
011 BUSH, CAMSHAFT 129795-02412 217,000
012 PLUG, 12 27241-120000 33,000
013 PLUG 30 27241-300000 157,000
023 BEARING, THRUST 129150-02931 279,000
026 SPACER 129004-01190 876,000
027 BOLT, HEAD 129150-01200 164,000
028 GASKET, HEAD 129407-01340 2,657,000
029 PLUG 119309-01810 52,000
030 BEARING, MAIN 129001-02931 945,000
033 BEARING, 0.25 US 129150-02871 560,000
036 BEARING, THRUST 0.25 129150-02941 350,000

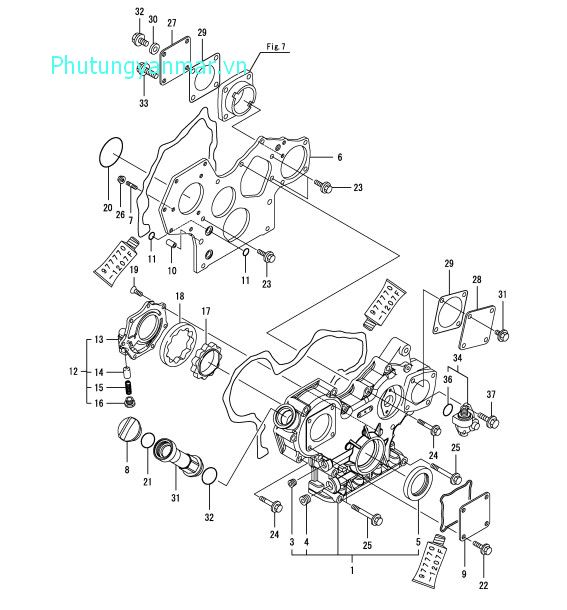

Vỏ hộp số

Vỏ hộp số
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CASEASSY, GEAR 729235-01500 9,835,000
3 PLUG, R03 23876-030000 80,000
4 PLUG, R04 23876-040000 92,000
5 SEAL, OIL 119934-01800 318,000
6 FLANGE, GEAR CASE 129004-01520 5,845,000
7 STUD, M8X25 119802-01561 44,000
8 COVER, FILLER 124160-01751 153,000
9 COVER 124240-01871 120,000
010 PIPE, KNOCK L=18 129795-01950 140,000
011 O-RING, P16 119609-32040 33,000
012 COVERASSY 119802-32100 1,970,000
013 COVER 119802-32070 1,750,000
014 VALVE, RELIEF 129900-32130 202,000
015 SPRING 129418-32320 101,000
016 PLUG 129001-32330 96,000
017 ROTOR, INNER 119802-32111 1,015,000
018 ROTOR, OUTER 119802-32120 945,000
019 SCREW, M6X16 119802-32130 16,000
020 O-RING 121850-51960 44,000
021 O-RING, 1AP32.0 24311-000320 33,000
022 BOLT, M8X 16 PLATED 26106-080162 16,000
023 BOLT, M8X 16 PLATED 26106-080162 16,000
024 BOLT, M8X 55 PLATED 26106-080552 24,000
025 BOLT, M8X 85 PLATED 26106-080852 24,000
026 NUT, M8 26306-080002 11,000
027 COVER 124240-01871 120,000
028 COVER 124240-01871 120,000
029 GASKET 124240-01883 44,000
030 WASHER, SEAL 6 22190-080002 40,000
031 BOLT, M8X 16 PLATED 26106-080162 16,000
032 BOLT, M8X 20 PLATED 26106-080202 16,000
033 BOLT, M8X 30 PLATED 26106-080302 20,000
034 GEAR 129150-91400 735,000
036 O-RING, 1AS24.0 24341-000240 28,000
037 BOLT, M6X 16 PLATED 26106-060162 16,000

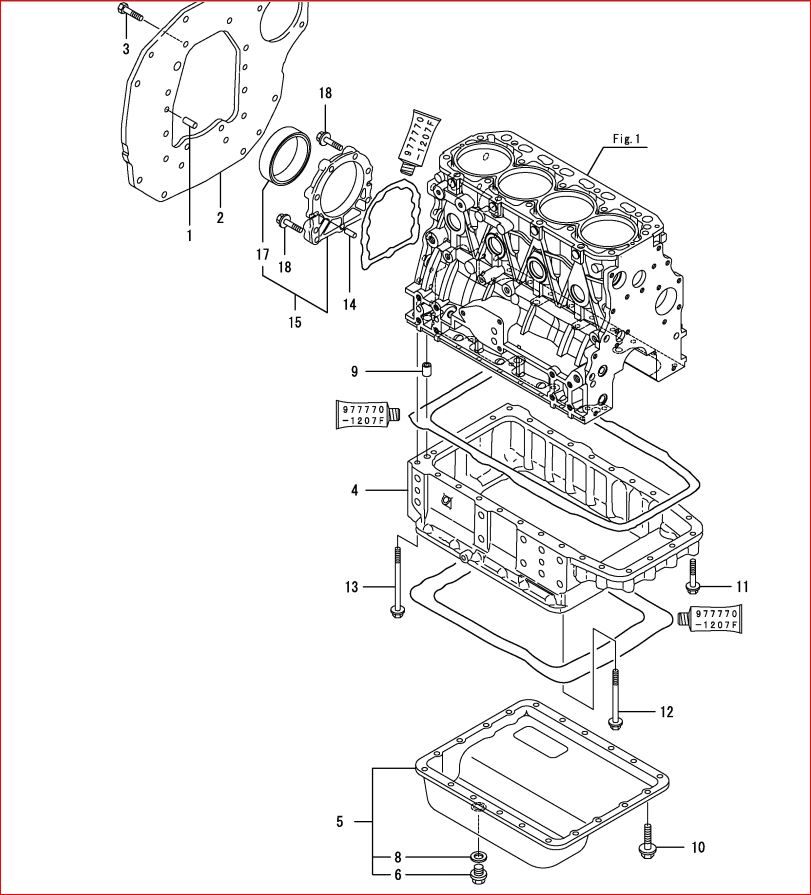

Bích lắp ráp

Bích lắp ráp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIN, M8X16 129100-01580 33,000
2 FLANGE, MOUNTING 129126-01600 14,490,000
3 BOLT, M10X 20 PLATED 26206-100202 24,000
4 SUMP, OIL 129550-01702 7,665,000
5 SUMPASSY, OIL 129659-01740 5,355,000
6 PLUG, 16 105425-01690 80,000
8 WASHER, SEAL 16 22190-160002 35,000
9 PIPE, KNOCK 14X18 129555-01750 77,000
010 BOLT, M8X 25 PLATED 26106-080252 20,000
011 BOLT, M8X 50 PLATED 26106-080502 24,000
012 BOLT, M8X100 PLATED 26106-081002 28,000
013 BOLT, M8X120 PLATED 26106-081202 28,000
014 PIN, M8X16 129100-01580 33,000
015 CASEASSY, OIL SEAL 129648-01600 2,100,000
017 SEAL, OIL 129648-01780 1,385,000
018 BOLT, M8X30 129486-01670 28,000

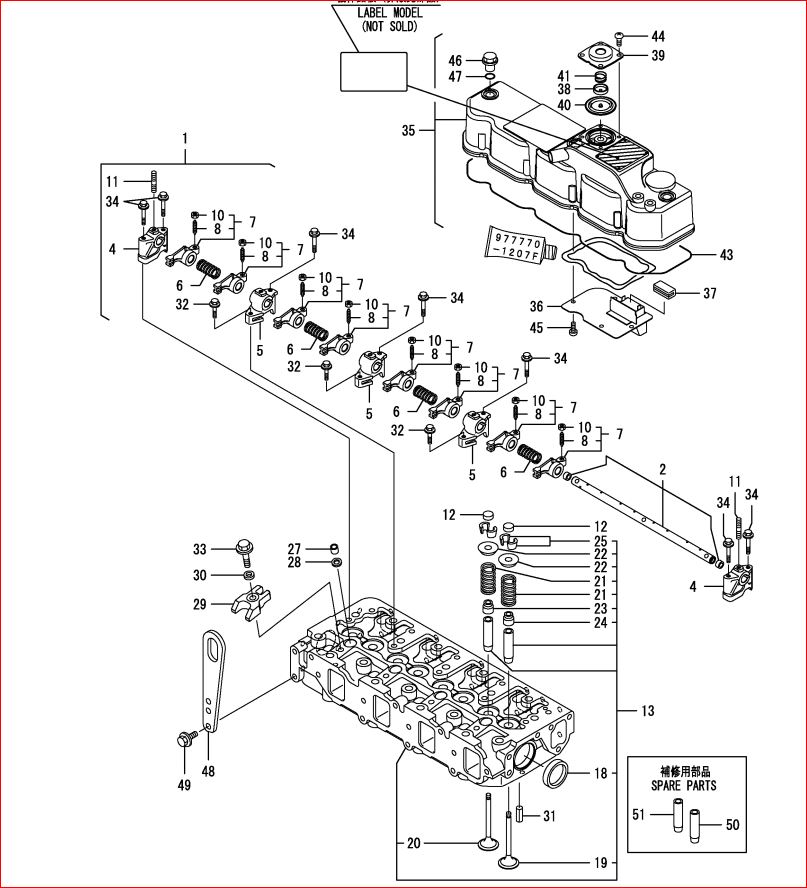

Nắp xilanh

Nắp xilanh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFTASSY, ROCKER 129601-11241 9,485,000
2 SHAFT, ROCKERARM 129601-11251 1,750,000
4 SUPPORT, ROCKERARM 119802-11260 525,000
5 SUPPORT, ROCKERARM 119802-11270 525,000
6 SPRING 129150-11280 105,000
7 ARM, ROCKER 129004-11650 666,000
8 SCREW, VALVEADJUST 129150-11230 77,000
010 NUT, M8 129150-11750 35,000
011 STUD, M8X 18 26226-080182 20,000
012 CAP, VALVE 129150-11370 75,000
013 HEADASSY, CYLINDER 129602-11700 21,876,000
018 PLUG, 40 27241-400000 30,000
019 VALVE, INTAKE 129005-11100 595,000
020 VALVE, EXHAUST 129100-11112 595,000
021 SPRING, VALVE 129795-11120 170,000
022 RETAINER, SPRING 129795-11180 116,000
023 SEAL, VALVE STEM 121400-11340 130,000
024 SEAL, VALVE STEM 124460-11340 130,000
025 COTTER, 8 27310-080001 132,000
027 PROTECTOR, NOZZLE 119802-11870 228,000
028 SEAT, NOZZLE 119625-11880 61,000
029 RETAINER, NOZZLE 129004-11900 595,000
030 WASHER, INJECTOR 120270-54410 89,000
031 PIN, SPRING 6.0X12 22351-060012 10,000
032 BOLT, M8X 25 PLATED 26106-080252 20,000
033 BOLT, M8X 35 PLATED 26106-080352 20,000
034 BOLT, M8X 50 PLATED 26106-080502 24,000
035 BONNETASSY, HEAD 129652-11350 5,250,000
036 PLATE 129004-03010 1,785,000
037 BAFFLE, BREATHER 129150-03070 77,000
038 PLATE 119802-03110 96,000
039 COVER, DIAPHRAGM 119802-03121 311,000
040 DIAPHRAGM 119802-03130 220,000
041 SPRING, DIAPHRAGM 119802-03141 28,000
043 GASKET, BONNET 129601-11310 786,000
044 SCREW, 5X10 22857-500100 16,000
045 SCREW, 5X10 22857-500100 16,000
046 KNOB 124160-11360 85,000
047 O-RING, 1AP12.0 24311-000120 20,000
048 LIFTER 129900-07900 137,000
049 BOLT, M8X 14 PLATED 26106-080142 16,000
050 GUIDE, VALVE 120130-11860 420,000
051 GUIDE, VALVE 129150-11810 263,000

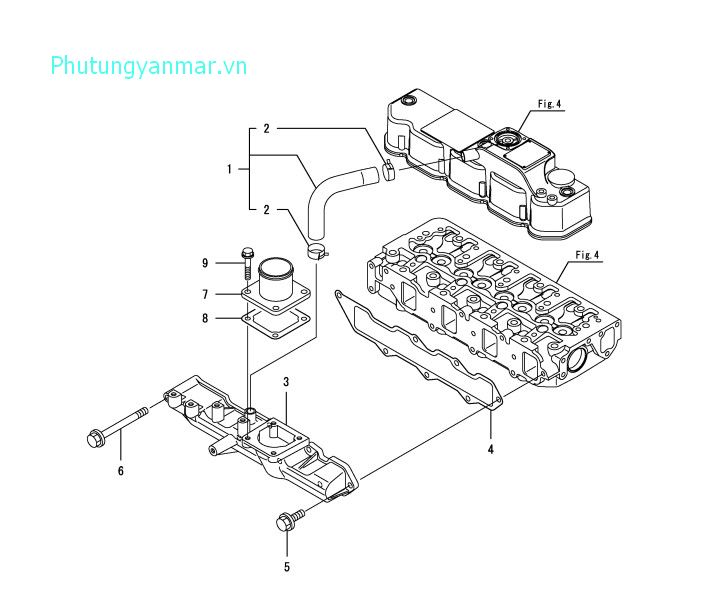

Cụm ống hút

Cụm ống hút
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE , BREATHER 129005-03080 455,000
2 CLIP 129410-03990 40,000
3 MANIFOLD,AIR INTAKE 129602-12101 5,600,000
4 GASKET, MANIFOLD 129407-12110 153,000
5 BOLT, M8X 20 PLATED 26106-080202 16,000
6 BOLT, M8X 80 PLATED 26106-080802 24,000
7 JOINT, MANIFOLD 129486-12581 1,155,000
8 GASKET 129150-77511 44,000
9 BOLT, M8X 20 PLATED 26106-080202 16,000

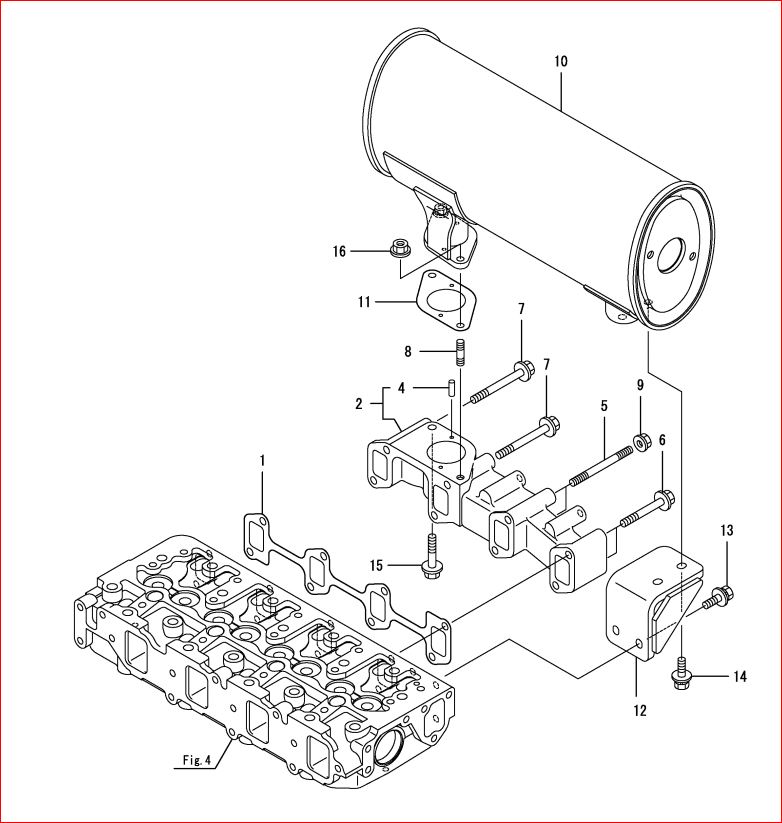

Ống xả

Ống xả
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 GASKET 129550-13110 54,000
2 MANIFOLDASSY 129659-13130 6,439,000
4 PIN, SPRING 4.0X12 22351-040012 16,000
5 STUD, M8X90 129263-13210 68,000
6 BOLT, M8X60 10.9T 119802-13640 68,000
7 BOLT, M8X75 10.9T 119802-13660 105,000
8 STUD, M8X22 119131-18320 48,000
9 NUT, M8 26306-080002 11,000
010 SILENCER 129659-13531 15,506,000
011 GASKET, SILENCER 129107-13540 60,000
012 STAY, SILENCER 129659-13680 844,000
013 BOLT, M8X 22 26014-080222 20,000
014 BOLT, M8X 25 26014-080252 20,000
015 BOLT, M8X 40 PLATED 26106-080402 20,000
016 NUT, M8 26306-080002 11,000

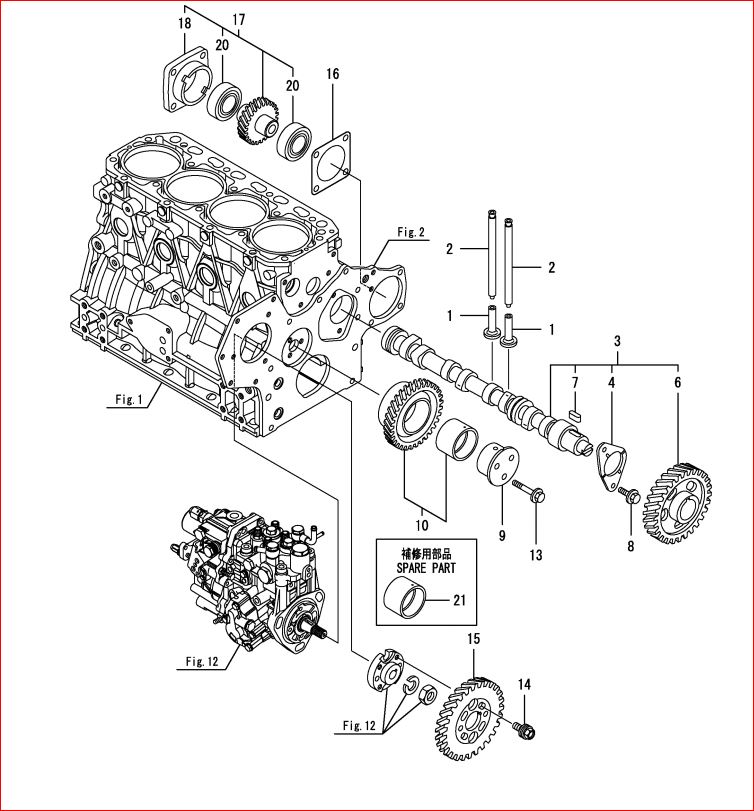

Trục cam

Trục cam
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TAPPET 129150-14200 263,000
2 ROD, PUSH L=178 129150-14400 65,000
3 CAMSHAFTASSY 729402-14580 6,545,000
4 BEARING, THRUST 129150-02450 347,000
6 GEAR, CAMSHAFT 129150-14101 1,785,000
7 KEY, 7X 14 22512-070140 33,000
8 BOLT, M8X 14 PLATED 26106-080142 16,000
9 SHAFT, IDLE 119802-25051 1,049,000
010 GEARASSY, IDLE 119802-25101 3,185,000
013 BOLT, M8X 40 PLATED 26106-080402 20,000
014 BOLT 129150-25301 113,000
015 GEAR, PUMP 119802-25901 3,395,000
016 GASKET 129150-01881 57,000
017 DRIVEASSY, PUMP 129150-26000 4,690,000
018 BRACKET, PUMP 129150-26050 770,000
020 BEARING, BALL 6006Z 24105-060064 168,000
021 BUSH, IDLE GEAR 119802-25071 525,000

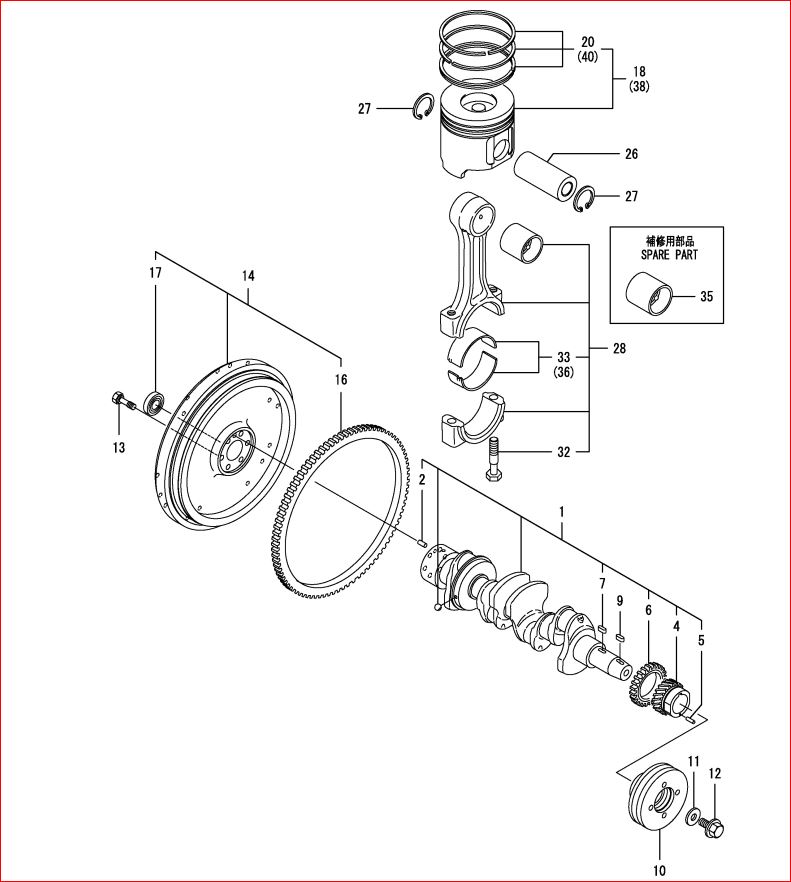

Tay quay, trục khuỷu

Tay quay, trục khuỷu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 CRANKSHAFTASSY 129657-21002 29,401,000
2 PIN, M8X16 129100-01580 33,000
4 GEAR, CRANKSHAFT 119802-21202 2,275,000
5 PIN 121850-21290 33,000
6 GEAR, BALANCER 129400-28121 1,173,000
7 KEY, 7X 14 22512-070140 33,000
9 KEY, 7X 14 22512-070140 33,000
010 V-PULLEY, 120 119852-21650 2,660,000
011 WASHER 129795-21661 116,000
012 BOLT 121850-21680 175,000
013 BOLT, FLYWHEEL 124160-21501 72,000
014 FLYWHEELASSY 129659-21581 17,431,000
016 GEAR, RING 124550-21600 2,800,000
017 BEARING, 6302UUC3 24104-063020 168,000
018 PISTON ASSY 129005-22080 4,294,000
020 RING SET, PISTON 129005-22500 1,272,000
026 PIN, PISTON D26 L70 129202-22300 748,000
027 RING, 26 22252-000260 11,000
028 RODASSY, CONNECTING 729402-23100 5,652,000
032 BOLT, CONNECTING ROD 121550-23200 129,000
033 BEARING, CRANK PIN 129150-23601 490,000
035 BEARING, PISTON PIN 129100-23910 164,000
036 BEARING, 0.25 US 129150-23611 595,000
038 PISTON ASSY, 0.25 OS 129005-22900 3,744,000
040 RING SET, 0.25 OS 129005-22950 1,295,000

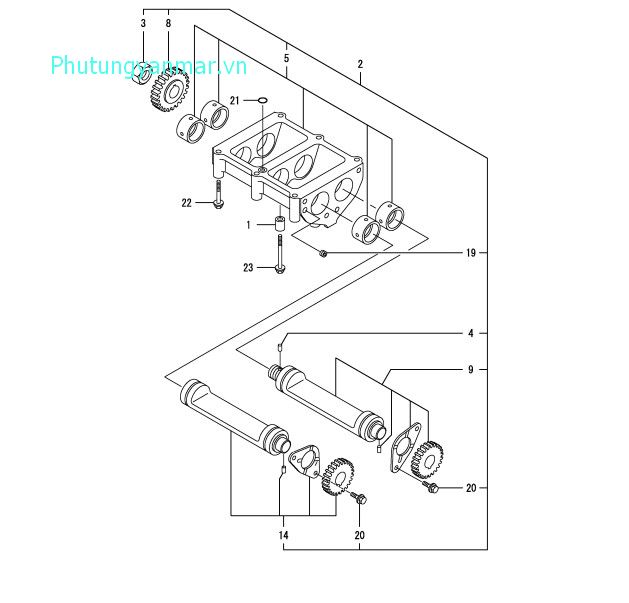

Công tắc

Công tắc
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE, KNOCK 129795-01960 133,000
2 BALANCERASSY 129457-28000 24,536,000
3 NUT 128170-14150 148,000
4 PIN 121850-21290 33,000
5 CASEASSY, BALANCER 129457-28011 10,780,000
8 GEAR, BALANCER 129400-28150 1,436,000
9 SHAFTASSY, BALANCER 729490-28510 6,650,000
014 SHAFTASSY, BALANCER 729490-28520 7,000,000
019 PLUG, R005 23876-005000 85,000
020 BOLT, M8X 14 PLATED 26106-080142 16,000
021 O-RING, 1AP14.0 24311-000140 20,000
022 BOLT, M8X 60 PLATED 26106-080602 24,000
023 BOLT, M8X 80 PLATED 26106-080802 24,000

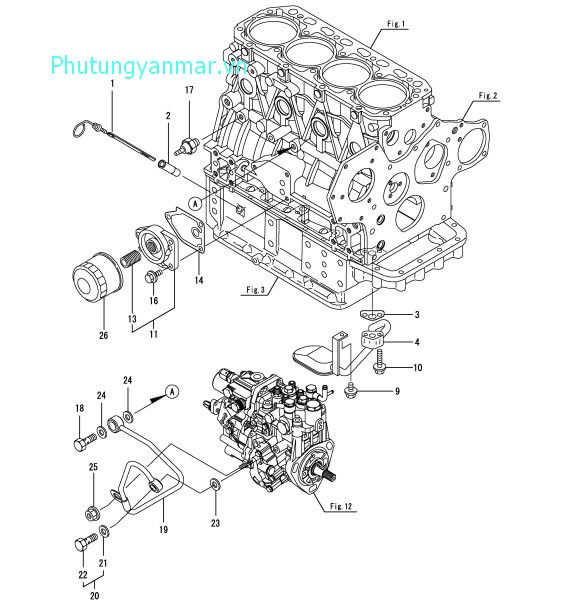

Hệ thống dầu

Hệ thống dầu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 DIPSTICK, OIL 129457-34800 524,000
2 GUIDE, DIPSTICK 121520-34810 125,000
3 GASKET 129150-35042 18,000
4 PIPEASSY, OIL INLET 129550-35090 490,000
9 BOLT, M8X 12 PLATED 26106-080122 16,000
010 BOLT, M8X 35 PLATED 26106-080352 20,000
011 BRACKETASSY, FILTER 119802-35100 438,000
013 STUD 129100-35140 175,000
014 GASKET 129150-35111 40,000
016 BOLT, M8X 20 PLATED 26106-080202 16,000
017 SWITCH, 0.5KG 114250-39450 161,000
018 BOLT, PIPE JOINT M10 124160-39140 77,000
019 PIPEASSY, OIL 119802-39450 666,000
020 BOLTASSY, JOINT M8 129005-59830 65,000
021 WASHER, SEAL 6 22190-080002 40,000
022 BOLT, JOINT 3 23857-030000 35,000
023 WASHER, SEAL 6 22190-080002 40,000
024 WASHER, SEAL 10 22190-100002 35,000
025 NUT, M6 26366-060002 22,000
026 FILTER 129150-35153 231,000

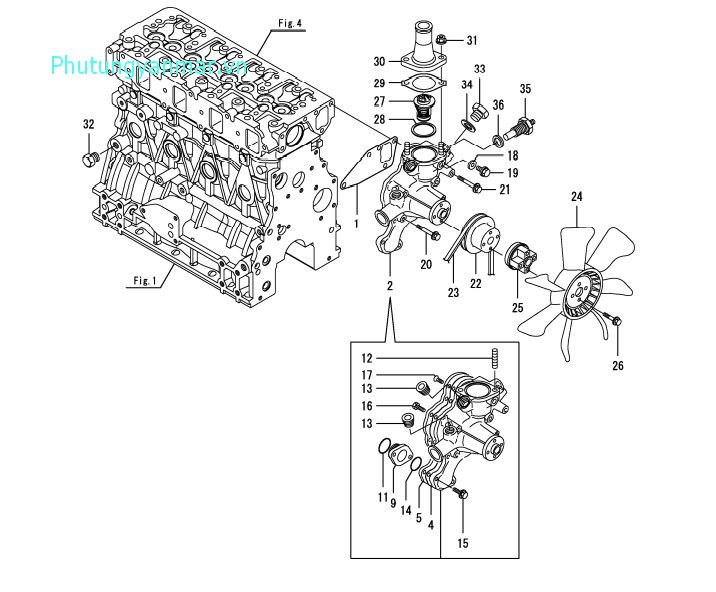

Hệ thống làm mát

Hệ thống làm mát
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 GASKET, WATER PUMP 129486-42050 92,000
2 PUMPASSY, WATER 129659-42050 12,355,000
4 GASKET 129150-42059 455,000
5 PLATE 129263-42120 910,000
9 FLANGE 129150-42301 343,000
011 O-RING 129054-42320 44,000
012 STUD, M8X30 129555-44750 33,000
013 PLUG, R03 129916-49740 140,000
014 O-RING, 524031 24358-240310 154,000
015 BOLT, M6X 20 PLATED 26106-060202 16,000
016 BOLT, M6X 16 PLATED 26116-060162 16,000
017 SCREW, M6X15 26577-060152 16,000
018 GASKET, 8X1.0 23414-080000 16,000
019 BOLT, M8X 12 PLATED 26106-080122 16,000
020 BOLT, M8X 55 PLATED 26106-080552 24,000
021 BOLT, M8X 60 PLATED 26106-080602 24,000
022 V-PULLEY, D=110 129403-42380 266,000
023 V-BELT, A40 25132-004000 262,000
024 FAN, COOLING D380 129655-44740 1,385,000
025 SPACER, FAN L38.5 129030-44760 1,085,000
026 BOLT, M6X 50 PLATED 26106-060502 20,000
027 THERMOSTAT, 71 129155-49801 630,000
028 GASKET, THERMOSTAT 129150-49811 44,000
029 GASKET 129795-49551 52,000
030 COVER, THERMOSTAT 129350-49560 1,049,000
031 NUT, M8 26306-080002 11,000
032 PLUG, DRAIN 171056-49120 255,000
033 PLUG, M16 121450-42450 96,000
034 GASKET, 16 124465-44950 35,000
035 SENSOR 124250-49351 616,000
036 GASKET 129150-49360 33,000

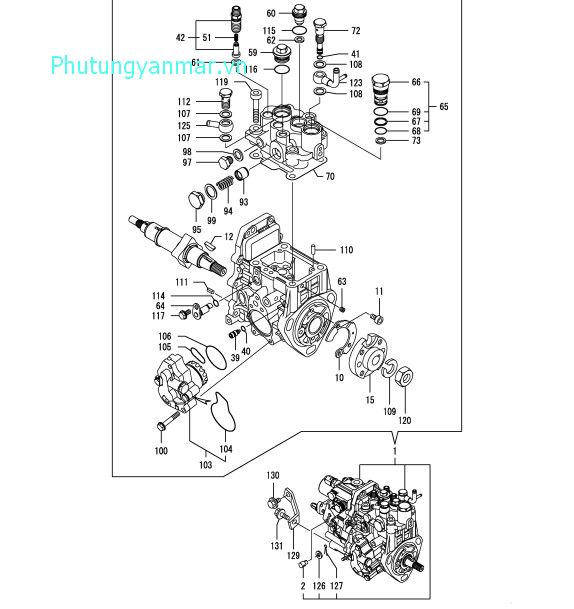

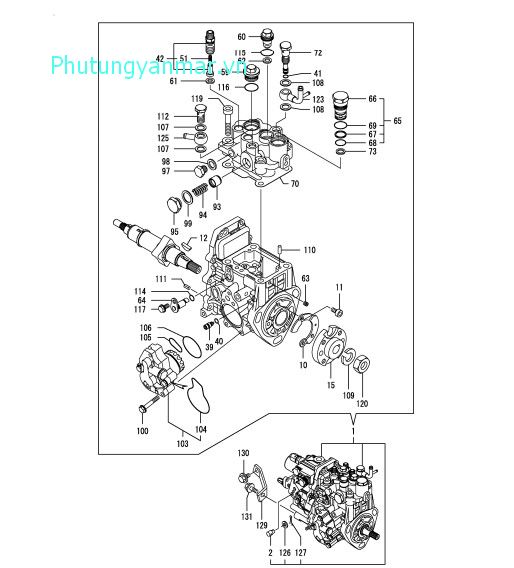

Bơm cao áp

Bơm cao áp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 INJECTION PUMPASSY 729659-51360 19,600,000
2 ADJUSTER 194150-01370 89,000
010 COVER, GEAR CASE 129008-51900 120,000
011 BOLT, M6X10 129008-51920 16,000
012 KEY, 4X16 119802-51090 33,000
015 FLANGE 158552-51151 839,000
039 STOPPER, TAPPET 158600-51270 65,000
040 O-RING, 4D S6 158563-51281 26,000
041 O-RING, 4D S6 158563-51281 26,000
042 VALVEASSY, DELIVERY 129509-51390 884,000
051 SPRING, DELIVERY 158563-51330 65,000
059 PLUG 158601-51550 196,000
060 PLUG, BARREL 119802-51560 339,000
061 GASKET 158552-51571 34,000
062 GASKET 158552-51571 34,000
063 PLUG 158557-51570 44,000
064 LIFTER 158552-51580 200,000
065 PLUG SET,TIMER 129271-51590 1,120,000
066 PLUG,TIMER 129271-51600 245,000
067 RING, BACK UP 119802-51680 44,000
068 O-RING 119802-51690 44,000
069 O-RING, 4D19020 24356-190200 46,000
070 GASKET 158552-51600 169,000
072 JOINT, OVER FLOW 158601-51650 260,000
073 GASKET 158553-51680 35,000
093 PISTON 158601-51770 220,000
094 SPRING 158552-51781 140,000
095 PLUG 158601-51790 116,000
097 PLUG, M12 158553-51930 48,000
098 WASHER, SEAL 12 22190-120002 40,000
099 WASHER, SEAL 18 22190-180002 40,000
100 BOLT 158553-51770 16,000
103 PUMPASSY, FUEL FEED 158552-52100 3,710,000
104 O-RING 158552-52500 48,000
105 O-RING 158552-52311 28,000
106 O-RING, 4E S42 158552-52400 20,000
107 WASHER, SEAL 12 22190-120002 40,000
108 WASHER, SEAL 12 22190-120002 40,000
109 WASHER, SPRING 14 22217-140000 16,000
110 PIN, PARALLEL M5X14 22312-050140 20,000
111 PIN, SPRING 5.0X10 22351-050010 20,000
112 BOLT, JOINT 6 23857-060000 28,000
114 O-RING, 1AP7.0 24311-000070 20,000
115 O-RING, 4D19018 24356-190180 80,000
116 O-RING, 4D19020 24356-190200 46,000
117 BOLT, M6X 10 PLATED 26106-060102 16,000
119 BOLT, M8X 45 26450-080452 40,000
120 NUT, LOCK M14 26776-140002 24,000
123 JOINT, OVER FLOW 158552-51670 159,000
125 JOINT, PIPE 12 129916-59020 234,000
126 WASHER, 8 22137-080000 16,000

Bơm cao áp (2-2)

Bơm cao áp (2-2)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
127 PIN, COTTER 1.6X18 22417-160180 8,000
129 RETAINER, PUMP 129601-51250 666,000
130 BOLT, M8X 16 PLATED 26106-080162 16,000
131 BOLT, M8X 20 PLATED 26106-080202 16,000

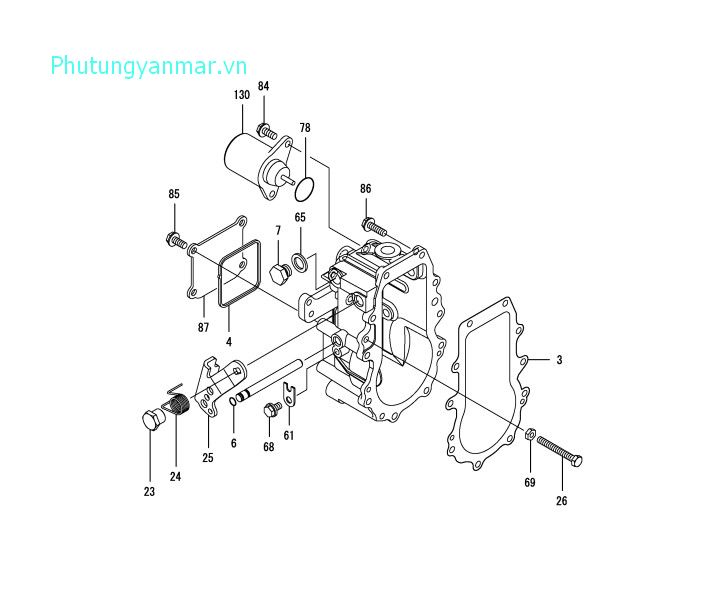

Cụm điều chỉnh

Cụm điều chỉnh
STT Tên sản phẩm Mã số Giá bán Đặt hàng
3 GASKET 158553-61050 140,000
4 GASKET 158553-61070 65,000
6 O-RING, S6 129155-51280 14,000
7 PLUG, M12 158553-51930 48,000
023 NUT, LOCK 129255-61410 57,000
024 SPRING, RETURN 119807-61420 60,000
025 LEVER, REGULATOR 158552-61441 157,000
026 BOLT, IDLE 129155-61460 202,000
061 RETAINER, SHAFT 119660-61901 40,000
065 WASHER, SEAL 12 22190-120002 40,000
068 BOLT, M6X 10 PLATED 26106-060102 16,000
069 NUT, LOCK M6 26756-060002 16,000
078 O-RING 158552-61900 12,000
084 BOLT, M6X 14 PLATED 26106-060142 16,000
085 BOLT, M6X 14 PLATED 26106-060142 16,000
086 BOLT, M6X 20 PLATED 26106-060202 16,000
087 COVER, GOVERNOR CASE 129642-61060 200,000
130 SOLENOID, STOP 119653-77950 3,256,000

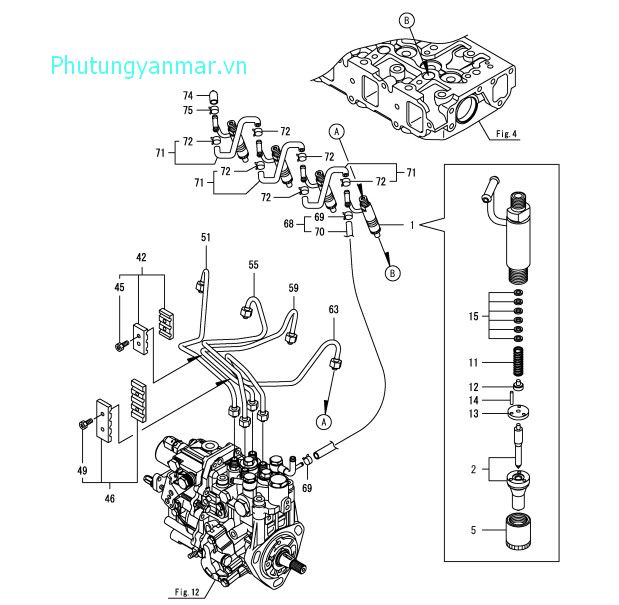

Van cao áp

Van cao áp
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 VALVEASSY,INJECTION 729004-53101 4,270,000
2 VALVEASSY,INJECTION 129004-53001 893,000
5 NUT, NOZZLE D16.95 114250-53080 175,000
011 SPRING, NOZZLE 114250-53120 48,000
012 SEAT, SPRING 114250-53130 44,000
013 PLATE 114250-53140 168,000
014 PIN 114250-53210 28,000
015 SHIM SET 119803-53400 420,000
042 RETAINER, PIPE 129150-59120 77,000
045 BOLT, M4X14 129150-59131 24,000
046 RETAINER, PIPE 129550-59120 231,000
049 BOLT, M4X14 129150-59131 24,000
051 PIPEASSY, INJECTION 129601-59810 735,000
055 PIPEASSY, INJECTION 129601-59820 735,000
059 PIPEASSY, INJECTION 129601-59830 735,000
063 PIPEASSY, INJECTION 129601-59840 735,000
068 PIPEASSY, RETURN 119802-59550 367,000
069 CLIP, HOSE 9 124722-59050 35,000
070 PIPE, FUEL RETURN 119802-59560 735,000
071 PIPEASSY, RETURN 129486-59551 70,000
072 CLIP, HOSE 9 124722-59050 35,000
074 CAP 119593-59581 72,000
075 CLIP, HOSE 10 124060-77680 28,000

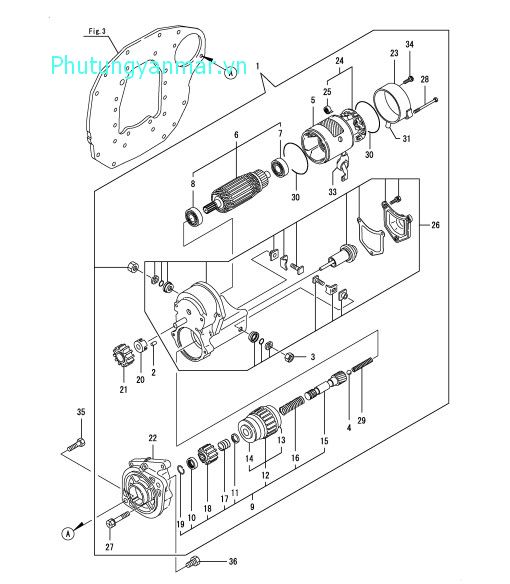

Bộ khởi động

Bộ khởi động
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STARTER, RA1.4 129407-77010 6,870,000
2 ROLLER X0283060061 28,000
3 NUT X9490561370 40,000
4 BALL X9491200240 20,000
5 YOKEASSY 129407-77210 6,370,000
6 ARMATUREASSY 129407-77220 6,930,000
7 BEARING 129129-77230 266,000
8 BEARING 129129-77240 322,000
9 STARTER 129407-77250 7,385,000
010 NUT X0280210230 52,000
011 RETAINER X0283270140 65,000
012 CLUTCHASSY 129407-77390 4,445,000
013 BEARING, BALL 129129-77440 525,000
014 BEARING, BALL 129129-77450 420,000
015 SHAFT 129129-77400 1,505,000
016 SPRING, COIL 129129-77410 82,000
017 SPRING, COIL X9491703371 28,000
018 PINION, STARTER 129129-77420 1,575,000
019 RING 129129-77430 109,000
020 RETAINER 129129-77260 153,000
021 PINION 129129-77270 2,380,000
022 HOUSING 129407-77280 2,520,000
023 FRAME 129407-77290 1,330,000
024 HOLDERASSY 129407-77300 1,169,000
025 SPRING X9491730461 35,000
026 SWITCHASSY 129407-77310 7,209,000
027 BOLT 129129-77320 85,000
028 BOLT 129407-77330 116,000
029 SPRING 129129-77340 42,000
030 O-RING 129129-77350 80,000
031 COVER 129129-77362 164,000
033 CAP 129129-77380 101,000
034 SCREW 129129-77460 68,000
035 BOLT 129155-77060 52,000
036 BOLT, M12X 20 PLATED 26116-120202 24,000

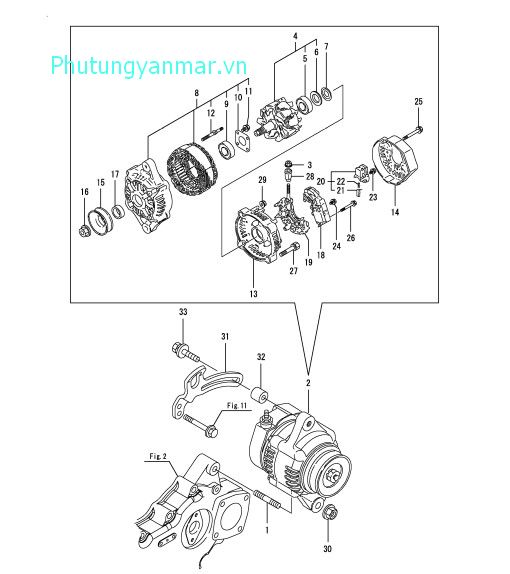

Bộ phát điện

Bộ phát điện
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 STUD 129795-01900 44,000
2 GENERATOR, 40A 119620-77201 7,350,000
3 NUT X9490561001 33,000
4 ROTORASSY 119620-77380 3,850,000
5 BEARING, BALL 123501-79240 266,000
6 COVER 119620-79250 52,000
7 WASHER, THRUST 119620-79360 178,000
8 FRAMEASSY, DRIVE 119620-77421 2,888,000
9 BEARING, BALL 119620-79200 273,000
010 PLATE, RETAINER 119620-79210 113,000
011 SCREW 119620-79220 35,000
012 STUD 119620-79230 140,000
013 FRAMEASSY 119620-77440 1,365,000
014 COVER 119620-77450 735,000
015 PULLEY 119620-77461 770,000
016 NUT 119620-77471 61,000
017 COLLAR 119620-77490 161,000
018 REGULATORASSY 119620-77710 2,572,000
019 HOLDER 119620-79260 3,220,000
020 HOLDER, BRUSH 119620-79270 525,000
021 BRUSHASSY 119620-77480 116,000
022 SPRING 119620-79280 22,000
023 SCREW 119620-79290 33,000
024 SCREW 119620-79300 33,000
025 BOLT 119620-79310 35,000
026 SCREW 119620-79320 28,000
027 BOLT 119620-79330 44,000
028 BUSH, INSULATION 119620-79340 162,000
029 NUT 119620-79350 35,000
030 NUT, M10 26306-100002 11,000
031 ADJUSTER 129107-77330 290,000
032 SPACER 124732-77340 89,000
033 BOLT,ADJUSTER L=50 129972-77341 153,000
messenger
zalo
