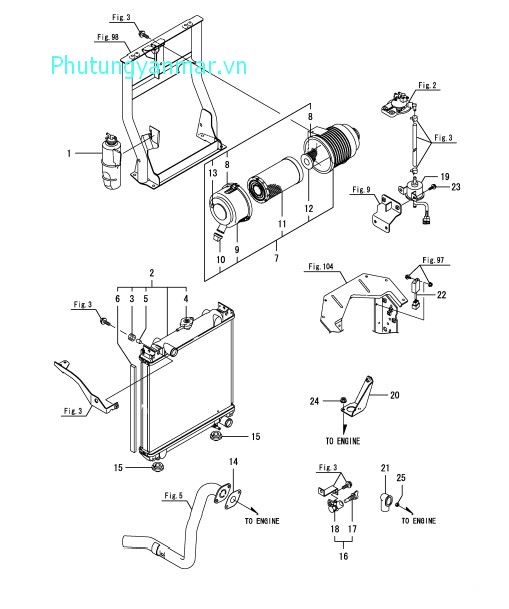

Liên quan động cơ (1)

Liên quan động cơ (1)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TANKASSY, SUB 1A8115-00650 155,000
2 RADIATOR SUB-ASSY 1A7781-01510 3,227,000
3 MOUNT, RUBBER 129467-44580 158,000
4 CAP, RADIATOR 129107-44590 533,000
5 COLLAR 129467-44590 165,000
6 SEAL, RADIATOR 129956-44730 490,000
7 CLEANERASSY,AIR 129659-12520 8,239,000
8 LABEL, MARK 129418-12530
9 COVERASSY 129900-12530 1,365,000
010 VALVE, UNLOADER 119808-12540 490,000
011 ELEMENT 129062-12560 1,575,000
012 ELEMENT 119005-12571 876,000
013 LABEL, MARKING 129612-12650
014 GASKET 129052-13550 105,000
015 ABSORBER 119255-44660 101,000
016 COCKASSY, 2-WAY 129550-49101 263,000
017 COCK, DRAIN 129150-49081 110,000
018 BODY, 2-WAY COCK 129550-49090 158,000
019 PUMP, FUEL FEED 1A7781-52100 1,220,000
020 STANDASSY, HOOD 1A7781-61630 264,000
021 COVER, TERMINAL 124550-77030 241,000
022 TIMER 129211-77920 1,305,000
023 BOLT, M6X 12 PLATED 26106-060122 14,000
024 NUT, M8 26306-080002 11,000
025 NUT, LOCK M6 26756-060002 16,000

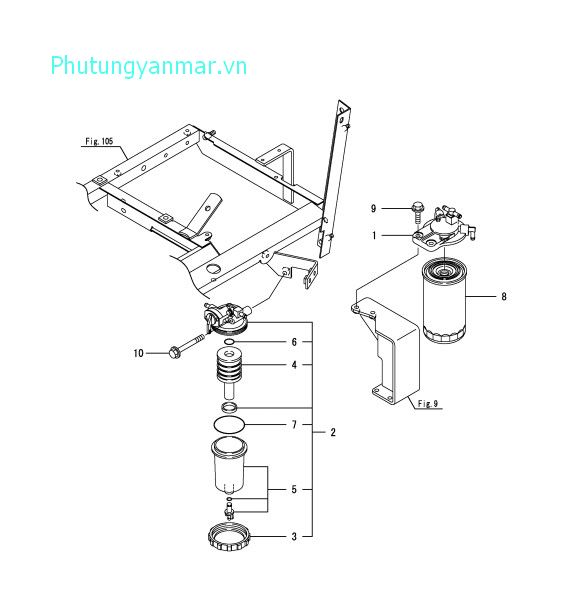

Liên quan động cơ (2)

Liên quan động cơ (2)
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BRACKET, FILTER 119934-55611 1,505,000
2 SEPARATOR ASSY 119802-55700 1,350,000
3 RING, RETAINING 129100-55690 89,000
4 ELEMENT 119802-55710 262,000
5 CUPASSY 119802-55730 486,000
6 O-RING, 1AP16.0 24311-000160 20,000
7 O-RING, 1AG65.0 24321-000650 44,000
8 FILTER, FUEL 129907-55801 700,000
9 BOLT, M8X 30 PLATED 26106-080302 20,000
010 BOLT, M8X 70 PLATED 26106-080702 24,000

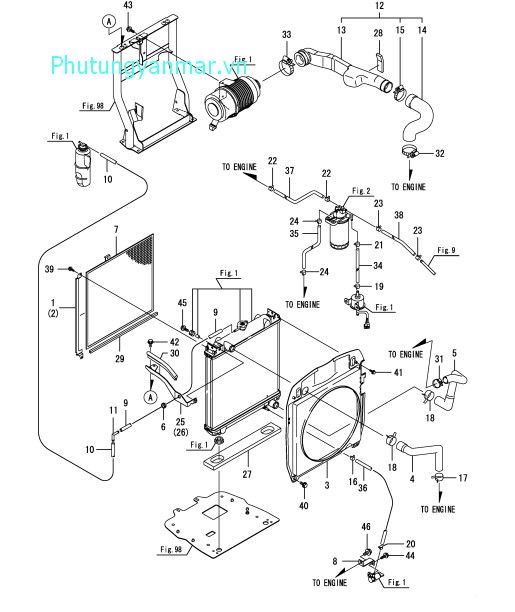

Hỗ trợ động cơ

Hỗ trợ động cơ
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 RAIL, RADIATOR L 1A7260-01030 102,000
2 RAIL, RADIATOR R 1A7260-01040 102,000
3 SHROUD, FAN 1A7260-01200 1,995,000
4 PIPE, WATERA 1A7260-01210 350,000
5 PIPE, WATER B 1A7260-01220 455,000
6 GROMMET, 13 194180-01240 80,000
7 SCREEN, RADIATOR 1A7780-01250 750,000
8 STAY, DRAIN 198242-02310 161,000
9 PIPE, OVERFLOW A 1A7260-03160 20,000
010 PIPE, OVERFLOW B 1A7260-03170 24,000
011 ELBOW 1A7260-03180 40,000
012 PIPEASSY, INTAKE 1A7310-06200 2,870,000
013 PIPE,AIR INTAKEA 1A7300-06210 2,100,000
014 PIPE,AIR INTAKE B 1A7270-06220 805,000
015 CLAMP, HOSE 129956-12160 231,000
016 CLIP, HOSE 12.5 106990-44660 / 23080-013000 ( mã thay thế) 40,000
017 CRIP 31, HOSE 175022-49730 72,000
018 CLIP 37, HOSE 175022-49750 101,000
019 CLIP, HOSE 12 114270-59010 35,000
020 CLIP, HOSE 11.5 124766-59050 40,000
021 CLIP, HOSE 11.5 124766-59050 40,000
022 CLIP, HOSE 11.5 124766-59050 40,000
023 CLIP, HOSE 11.5 124766-59050 40,000
024 CLIP, HOSE 11.5 124766-59050 40,000
025 STAYASSY, RADIATOR 1A7270-60211 350,000
026 STAYASSY, RADIATOR 1A7270-60221 350,000
027 URETHANE, RADIATOR 1A7780-60860 137,000
028 URETHANE, HOSE 1A7260-60880 40,000
029 URETHANE, RADIATOR 198071-61990 72,000
030 WEATHER-STRIP, 250 1A7781-63660 49,000
031 CLAMP, 35 23000-035000 113,000
032 CLAMP, 70 23000-070000 51,000
033 CLAMP, 80 23000-080000 170,000
034 HOSE, 7.3X 250 23980-730250 47,000
035 HOSE, 7.3X 400 23980-730400 74,000
036 HOSE, 7.3X 400 23980-730400 74,000
037 HOSE, 7.3X 420 23980-730420 83,000
038 HOSE, 7.3X 760 23980-730760 339,000
039 BOLT, M6X 12 PLATED 26106-060122 14,000
040 BOLT, M6X 12 PLATED 26106-060122 14,000
041 BOLT, M6X 25 PLATED 26106-060252 16,000
042 BOLT, M8X 16 PLATED 26106-080162 16,000
043 BOLT, M8X 16 PLATED 26106-080162 16,000
044 BOLT, M8X 16 PLATED 26106-080162 16,000
045 BOLT, M8X 25 PLATED 26106-080252 20,000
046 BOLT, M10X 16 PLATED 26106-100162 20,000

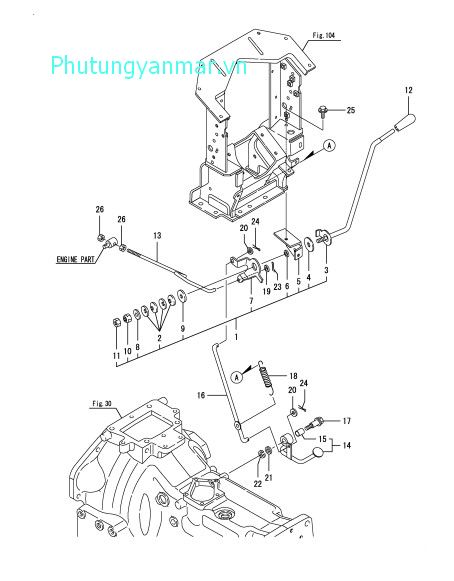

Cần gia tốc

Cần gia tốc
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 LEVER KIT 7A7780-01110 677,000
2 SPRING, 10 194740-00160 40,000
3 LEVERASSY 1A7780-01110 1,190,000
4 PLATE, FRICTION 198165-01130 202,000
5 BRACKET, LEVER 198220-01140 168,000
6 SPACER, 20 194150-01270 234,000
7 LEVER, LINK 198242-01350 81,000
8 WASHER, 10 194145-61570 154,000
9 WASHER, 10 22157-100000 16,000
010 NUT, M10 26716-100002 20,000
011 NUT, LOCK M10 26756-100002 20,000
012 KNOB, LEVER 1A8115-01190 34,000
013 ROD, LINK 1A7780-01320 266,000
014 PEDALASSY, CONTROL 1A7781-01400 153,000
015 BUSH, 14X20 24550-014200 61,000
016 ROD, ACCELERATOR 198240-01450 77,000
017 BOLT, M10 198240-01470 234,000
018 SPRING, RETURN 1A7781-04400 20,000
019 WASHER, 8 22137-080000 16,000
020 WASHER, 8 22137-080000 16,000
021 WASHER, 10 22137-100000 16,000
022 WASHER, SPRING 10 22217-100000 16,000
023 PIN, COTTER 2.5X30 22417-250300 8,000
024 PIN, COTTER 2.5X30 22417-250300 8,000
025 BOLT, M8X 16 PLATED 26106-080162 16,000
026 NUT, M8 26716-080002 10,000

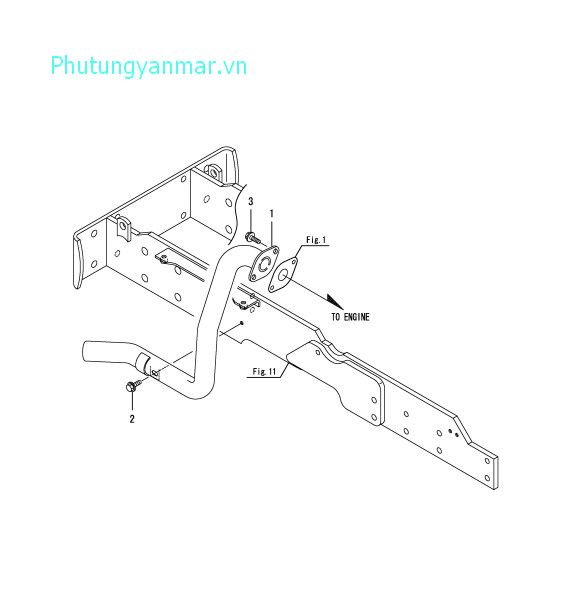

Ống xả

Ống xả
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE, EXHAUST 1A7780-03110 834,000
2 BOLT, M8X 20 PLATED 26106-080202 16,000
3 BOLT, M8X 20 PLATED 26106-080202 16,000

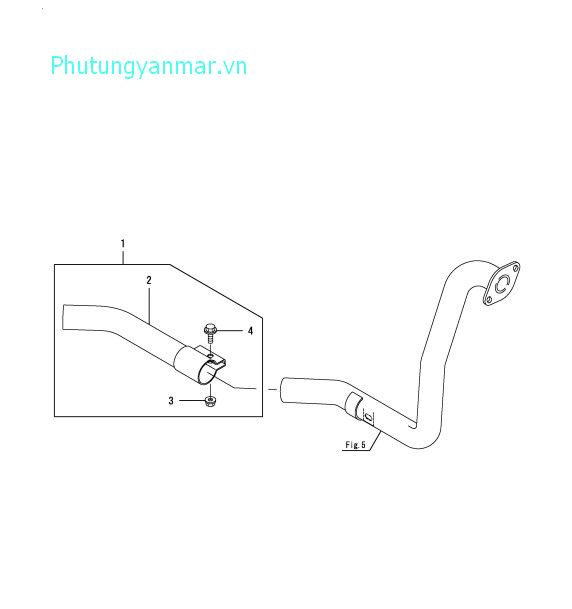

Ống nối thoát khí

Ống nối thoát khí
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PIPE KIT, EXTENSION 1A7780-03300 243,000
2 PIPE, EXTENSION 453T 1A7780-03350 234,000
3 NUT, M8 194990-22140 33,000
4 BOLT, M8X 20 PLATED 26106-080202 16,000

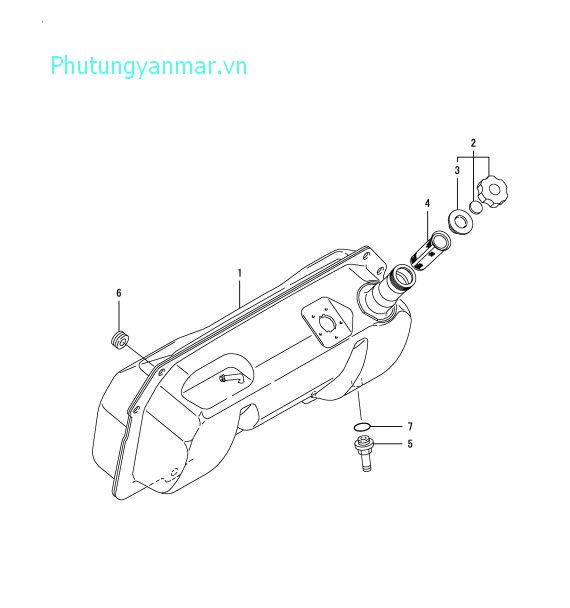

Bể nhiên liệu

Bể nhiên liệu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TANKASSY, FUEL 1A7780-04111-1 12,243,000
2 CAPASSY, FILLER 198071-04500 714,000
3 SEAL, RUBBER 1A1120-61541 133,000
4 FILTER 198072-04510 126,000
5 JOINT, PIPE 198230-04750 89,000
6 GROMMET 194170-51210 44,000
7 O-RING, 1AP15.0 24311-000150 20,000

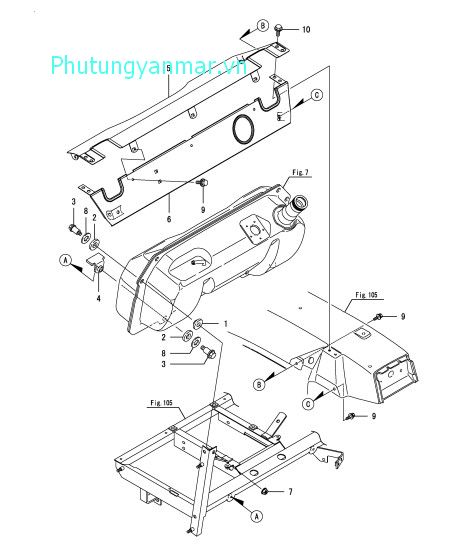

Giá đỡ thùng

Giá đỡ thùng
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PACKING, TANK A 194555-04260 85,000
2 PACKING, TANK B 194555-04270 80,000
3 BOLT, M8X26 194555-04280 48,000
4 GASKET, TANK 198220-04290 116,000
5 COVER MASSY, FRONT 1A7780-04290 3,080,000
5-1 COVER, TANK FRONT 198320-04300 5,635,000
6 COVER, TANK REAR M 1A7780-04350 878,000
7 NUT, M8 194990-22140 33,000
8 WASHER, 12 22157-120000 16,000
9 BOLT, M6X 16 26018-060162 28,000
010 BOLT, M8X 16 PLATED 26106-080162 16,000

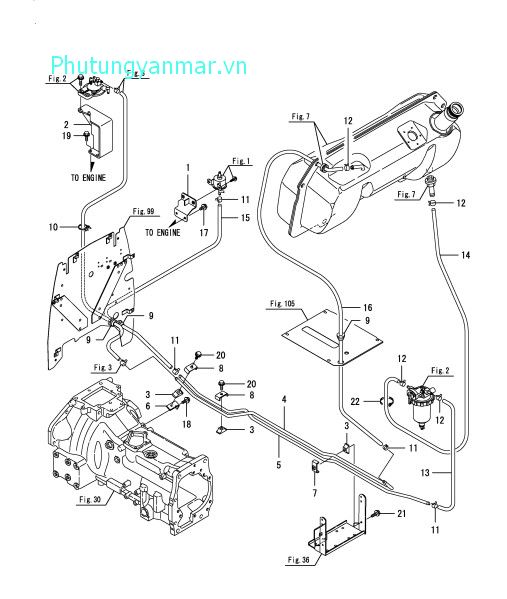

Ống nhiên liệu

Ống nhiên liệu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BRACKET, FEED PUMP 1A7781-04500 160,000
2 STAYASSY, FO FILTER 1A7781-04610 238,000
3 BASE, CLAMP 198240-04710 455,000
4 PIPE, FUEL 198240-04750 490,000
5 PIPE, FUEL 198240-04760 560,000
6 PLATE 198240-04780 300,000
7 CLAMP 198327-04840 57,000
8 CLAMP, PIPE 194180-17770 72,000
9 GROMMET 194170-51210 44,000
010 CLIP, BAND 198448-51910 40,000
011 CLIP, HOSE 12 114270-59010 35,000
012 CLIP, HOSE 11.5 124766-59050 40,000
013 HOSE, 7.3X 300 23980-730300 92,000
014 HOSE, 7.3X 300 23980-730300 92,000
015 HOSE, 7.3X 450 23980-730450 157,000
016 HOSE, 7.3X1120 23980-731120 299,000
017 BOLT, M8X 16 26013-080162 16,000
018 BOLT, M8X 16 PLATED 26106-080162 16,000
019 BOLT, M8X 20 PLATED 26106-080202 16,000
020 BOLT, M8X 25 PLATED 26106-080252 20,000
021 BOLT, M8X 30 PLATED 26106-080302 20,000
022 BAND, RF140 29622-140001 8,000

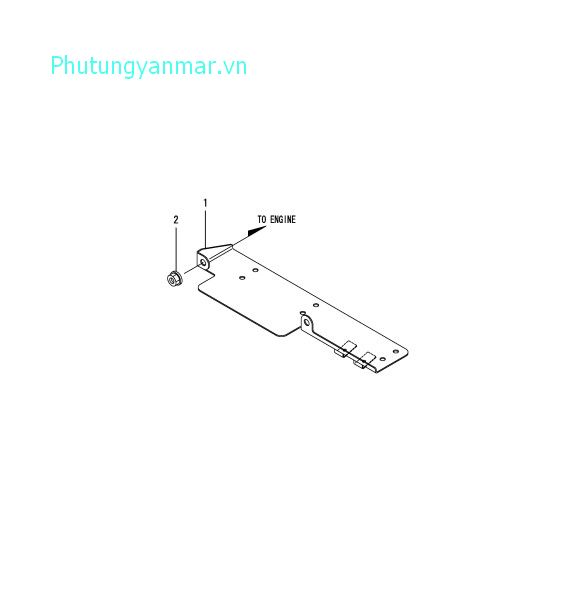

cửa thông gió

cửa thông gió
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PLATE, SHUTTER 1A8205-05510 490,000
2 NUT, M8 194990-22140 33,000
