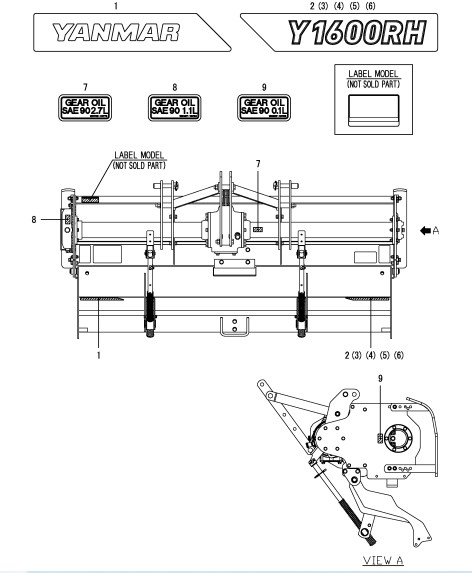

Nhãn

Nhãn
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 LABEL, YANMAR 1B1768-10430
2 LABEL, NAME 1B1766-10530
3 LABEL, NAME 1B1767-10530
4 LABEL, NAME 1B1768-10530
5 LABEL, NAME 1B1769-10530
6 LABEL, NAME 1B1770-10530
7 LABEL, OIL 2.7 1B1768-10770
8 LABEL, OIL 1.1 1B1657-10780
9 LABEL, OIL 0.1 1B1657-10790

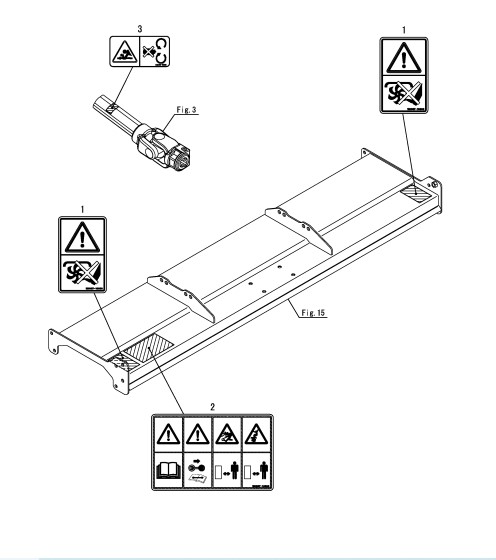

Nhãn an toàn

Nhãn an toàn
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 LABEL, WARNING ROTAR 1B1657-10630
2 LABEL, CAUTION 1B1657-10660
3 LABEL, COVER 1A6150-93151

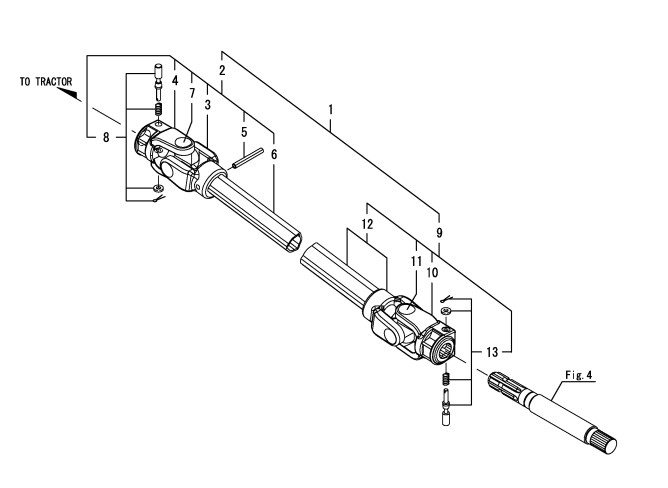

Trục truyền động

Trục truyền động
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT ASSY, DRIVE 1B1657-11302 8,080,000
2 SHAFT ASSY, INNER 1B1657-11321
3 YOKE, SHAFT 1B1657-11100
4 YOKE, SLEEVE 1B1657-11120
5 PIN, SPRING 1B1657-11130
6 TUBE, DRIVE INNER 1B1657-11140
7 JOURNAL KIT,CROSS 1B1657-11200
8 PIN KIT, LOCK 1B1657-11501 798,000
9 SHAFT ASSY, OUTER 1B1657-11331
010 YOKE, SLEEVE 1B1657-11120
011 JOURNAL KIT,CROSS 1B1657-11200
012 SHAFT ASSY, OUTER 1B1657-11340
013 PIN KIT, LOCK 1B1657-11501 798,000

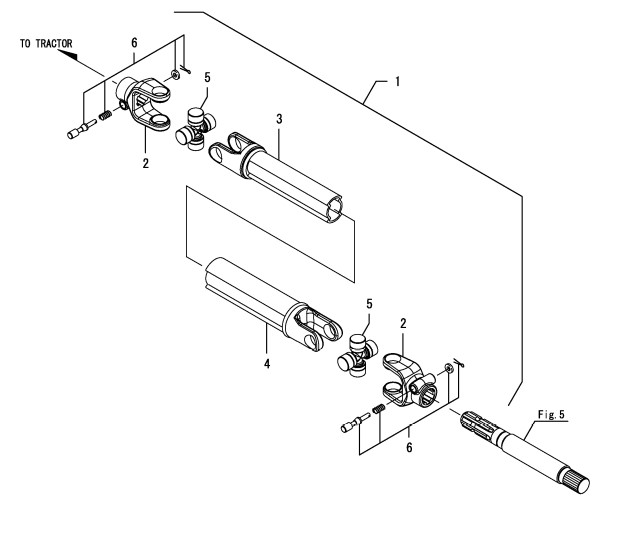

Trục truyền động ph

Trục truyền động ph
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT ASSY, DRIVE 1B1658-11300
2 YOKE, QD 195398-11310
3 YOKE, SHAFT 1B1658-11320
4 YOKE, SLEEVE 1B1658-11330
5 JOINT, UNIVERSAL 195398-11340
6 PIN, KNOCK 195051-11380

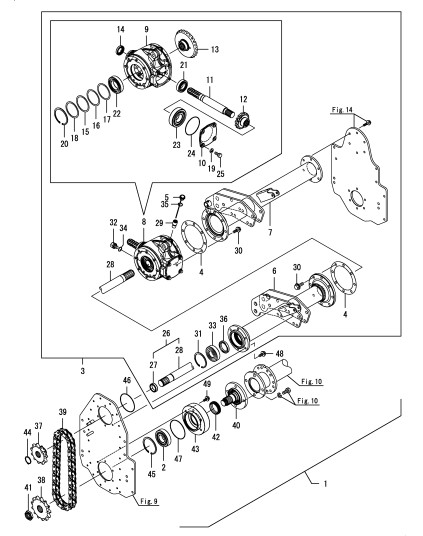

Truyền động - 1600

Truyền động - 1600
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TRANSMISSION ASSY 1B1766-13000
2 BEARING, 6309G3C3 105400-02300 1,232,000
3 BOX UNIT, GEAR 1B1766-14050
4 GASKET, GEAR BOX 1B1768-13120 157,000
5 PLUG, OIL 195450-13171 455,000
6 FRAME ASSY, MAIN L 1B1766-13400
7 FRAME ASSY, MAIN R 1B1766-13600
8 GEARBOX ASSY 1B1768-14100
9 HOUSING, GEAR 1B1768-13110 6,584,000
010 COVER, GEAR BOX 1B1768-13150
011 PINION, SHAFT 1B1768-14110 3,455,000
012 GEAR, BEVEL 14 1B1768-14130 4,127,000
013 GEAR, BEVEL 27 1B1768-14150 6,430,000
014 SEAL, TC355511 1B1768-14170 85,000
015 SHIM, 0.5 1B1657-14260 27,000
016 SHIM, 0.3 1B1657-14270 35,000
017 SHIM, 0.2 1B1657-14280 35,000
018 SHIM, 1.0 1B1657-14290 44,000
019 WASHER, SPRING 10 22217-100000 16,000
020 RING, 100 22252-001000 240,000
021 BEARING, BALL 6207 24101-062074V 119,000
022 BEARING, BALL 6211 24101-062114 525,000
023 BEARING, BALL 6310 24101-063104
024 O-RING, 4DG110.0 24326-001100 294,000
025 BOLT, M10X 25 PLATED 26116-100252 24,000
026 SHAFT ASSY, DRIVEN 1B1766-14200
027 COLLAR, DRIVEN SHAFT 1B1657-14190 159,000
028 SHAFT, DRIVEN 1B1766-14210
029 PIPE, OIL 45 195505-15250-1
030 BOLT, M12X30 1A6770-85920 48,000
031 RING, 90 22252-000900 151,000
032 PLUG, 10 23491-100002
033 BEARING, BALL 6308UU 24104-063084V 334,000
034 O-RING, 1AP12.0 24311-000120 20,000
035 O-RING, 1AS18.0 24341-000180 27,000
036 OIL SEAL SC50729 24411-507209 65,000
037 SPROCKET, 11 1B1768-14700 1,271,000
038 SPROCKET, 13 1B1768-14710 2,595,000
039 CHAIN, 100X36L 1B1659-14730 3,369,000
040 SHAFT, FINAL 1B1768-14810 1,973,000
041 NUT, M36R 1B1657-14850 142,000
042 SEAL, DUO CONE 1B1768-14900 399,000
043 CASE, FINAL 1B1768-15120 1,170,000
044 RING, 40 22242-000400 28,000
045 RING, 100 22252-001000 240,000
046 O-RING, 1AG110.0 24321-001100 72,000
047 O-RING, 1AG115.0 24321-001150 121,000
048 BOLT, M10X 25 PLATED 26106-100252 24,000
049 BOLT, M10X 25 PLATED 26106-100252 24,000

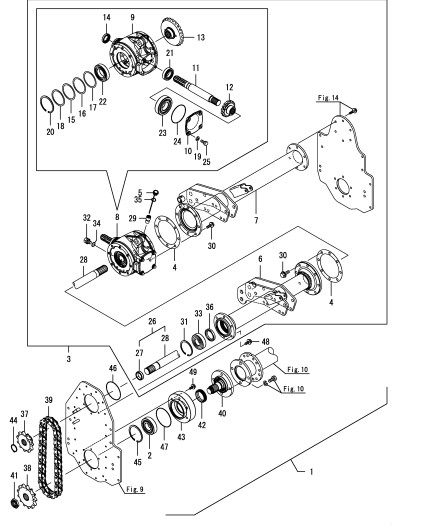

Truyền động - 1700

Truyền động - 1700
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TRANSMISSION ASSY 1B1767-13000
2 BEARING, 6309G3C3 105400-02300 1,232,000
3 BOX UNIT, GEAR 1B1767-14050
4 GASKET, GEAR BOX 1B1768-13120 157,000
5 PLUG, OIL 195450-13171 455,000
6 FRAME ASSY, MAIN L 1B1766-13400
7 FRAME ASSY, MAIN R 1B1768-13600
8 GEARBOX ASSY 1B1768-14100
9 HOUSING, GEAR 1B1768-13110 6,584,000
010 COVER, GEAR BOX 1B1768-13150
011 PINION, SHAFT 1B1768-14110 3,455,000
012 GEAR, BEVEL 14 1B1768-14130 4,127,000
013 GEAR, BEVEL 27 1B1768-14150 6,430,000
014 SEAL, TC355511 1B1768-14170 85,000
015 SHIM, 0.5 1B1657-14260 27,000
016 SHIM, 0.3 1B1657-14270 35,000
017 SHIM, 0.2 1B1657-14280 35,000
018 SHIM, 1.0 1B1657-14290 44,000
019 WASHER, SPRING 10 22217-100000 16,000
020 RING, 100 22252-001000 240,000
021 BEARING, BALL 6207 24101-062074V 119,000
022 BEARING, BALL 6211 24101-062114 525,000
023 BEARING, BALL 6310 24101-063104
024 O-RING, 4DG110.0 24326-001100 294,000
025 BOLT, M10X 25 PLATED 26116-100252 24,000
026 SHAFT ASSY, DRIVEN 1B1766-14200
027 COLLAR, DRIVEN SHAFT 1B1657-14190 159,000
028 SHAFT, DRIVEN 1B1766-14210
029 PIPE, OIL 45 195505-15250-1
030 BOLT, M12X30 1A6770-85920 48,000
031 RING, 90 22252-000900 151,000
032 PLUG, 10 23491-100002
033 BEARING, BALL 6308UU 24104-063084V 334,000
034 O-RING, 1AP12.0 24311-000120 20,000
035 O-RING, 1AS18.0 24341-000180 27,000
036 OIL SEAL SC50729 24411-507209 65,000
037 SPROCKET, 11 1B1768-14700 1,271,000
038 SPROCKET, 13 1B1768-14710 2,595,000
039 CHAIN, 100X36L 1B1659-14730 3,369,000
040 SHAFT, FINAL 1B1768-14810 1,973,000
041 NUT, M36R 1B1657-14850 142,000
042 SEAL, DUO CONE 1B1768-14900 399,000
043 CASE, FINAL 1B1768-15120 1,170,000
044 RING, 40 22242-000400 28,000
045 RING, 100 22252-001000 240,000
046 O-RING, 1AG110.0 24321-001100 72,000
047 O-RING, 1AG115.0 24321-001150 121,000
048 BOLT, M10X 25 PLATED 26106-100252 24,000
049 BOLT, M10X 25 PLATED 26106-100252 24,000

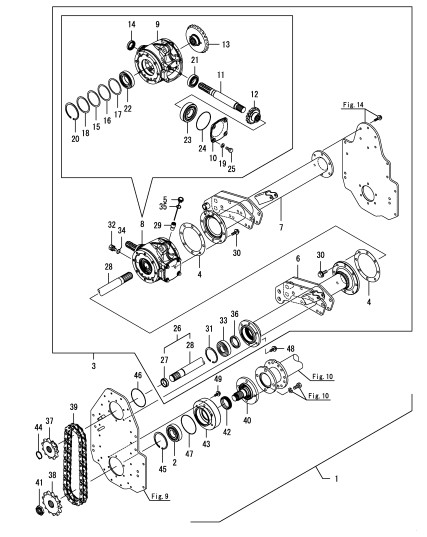

Truyền động - 1800

Truyền động - 1800
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TRANSMISSION ASSY 1B1768-13000
2 BEARING, 6309G3C3 105400-02300 1,232,000
3 BOX UNIT, GEAR 1B1768-14050
4 GASKET, GEAR BOX 1B1768-13120 157,000
5 PLUG, OIL 195450-13171 455,000
6 FRAME ASSY, MAIN L 1B1768-13400
7 FRAME ASSY, MAIN R 1B1768-13600
8 GEARBOX ASSY 1B1768-14100
9 HOUSING, GEAR 1B1768-13110 6,584,000
010 COVER, GEAR BOX 1B1768-13150
011 PINION, SHAFT 1B1768-14110 3,455,000
012 GEAR, BEVEL 14 1B1768-14130 4,127,000
013 GEAR, BEVEL 27 1B1768-14150 6,430,000
014 SEAL, TC355511 1B1768-14170 85,000
015 SHIM, 0.5 1B1657-14260 27,000
016 SHIM, 0.3 1B1657-14270 35,000
017 SHIM, 0.2 1B1657-14280 35,000
018 SHIM, 1.0 1B1657-14290 44,000
019 WASHER, SPRING 10 22217-100000 16,000
020 RING, 100 22252-001000 240,000
021 BEARING, BALL 6207 24101-062074V 119,000
022 BEARING, BALL 6211 24101-062114 525,000
023 BEARING, BALL 6310 24101-063104
024 O-RING, 4DG110.0 24326-001100 294,000
025 BOLT, M10X 25 PLATED 26116-100252 24,000
026 SHAFT ASSY, DRIVEN 1B1768-14200 5,207,000
027 COLLAR, DRIVEN SHAFT 1B1657-14190 159,000
028 SHAFT, DRIVEN 1B1768-14210 4,899,000
029 PIPE, OIL 45 195505-15250-1
030 BOLT, M12X30 1A6770-85920 48,000
031 RING, 90 22252-000900 151,000
032 PLUG, 10 23491-100002
033 BEARING, BALL 6308UU 24104-063084V 334,000
034 O-RING, 1AP12.0 24311-000120 20,000
035 O-RING, 1AS18.0 24341-000180 27,000
036 OIL SEAL SC50729 24411-507209 65,000
037 SPROCKET, 11 1B1768-14700 1,271,000
038 SPROCKET, 13 1B1768-14710 2,595,000
039 CHAIN, 100X36L 1B1659-14730 3,369,000
040 SHAFT, FINAL 1B1768-14810 1,973,000
041 NUT, M36R 1B1657-14850 142,000
042 SEAL, DUO CONE 1B1768-14900 399,000
043 CASE, FINAL 1B1768-15120 1,170,000
044 RING, 40 22242-000400 28,000
045 RING, 100 22252-001000 240,000
046 O-RING, 1AG110.0 24321-001100 72,000
047 O-RING, 1AG115.0 24321-001150 121,000
048 BOLT, M10X 25 PLATED 26106-100252 24,000
049 BOLT, M10X 25 PLATED 26106-100252 24,000

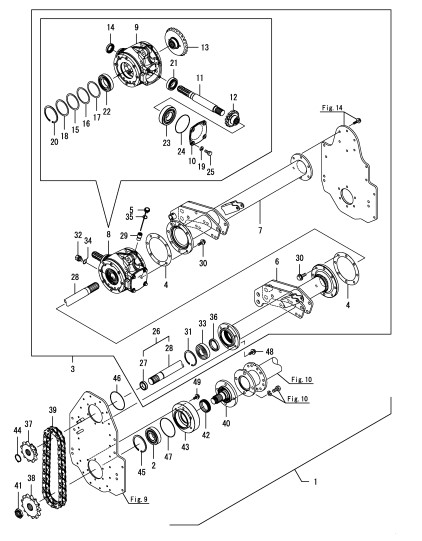

Truyền động - 1900

Truyền động - 1900
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TRANSMISSION ASSY 1B1769-13000
2 BEARING, 6309G3C3 105400-02300 1,232,000
3 BOX UNIT, GEAR 1B1769-14050
4 GASKET, GEAR BOX 1B1768-13120 157,000
5 PLUG, OIL 195450-13171 455,000
6 FRAME ASSY, MAIN L 1B1768-13400
7 FRAME ASSY, MAIN R 1B1769-13600
8 GEARBOX ASSY 1B1768-14100
9 HOUSING, GEAR 1B1768-13110 6,584,000
010 COVER, GEAR BOX 1B1768-13150
011 PINION, SHAFT 1B1768-14110 3,455,000
012 GEAR, BEVEL 14 1B1768-14130 4,127,000
013 GEAR, BEVEL 27 1B1768-14150 6,430,000
014 SEAL, TC355511 1B1768-14170 85,000
015 SHIM, 0.5 1B1657-14260 27,000
016 SHIM, 0.3 1B1657-14270 35,000
017 SHIM, 0.2 1B1657-14280 35,000
018 SHIM, 1.0 1B1657-14290 44,000
019 WASHER, SPRING 10 22217-100000 16,000
020 RING, 100 22252-001000 240,000
021 BEARING, BALL 6207 24101-062074V 119,000
022 BEARING, BALL 6211 24101-062114 525,000
023 BEARING, BALL 6310 24101-063104
024 O-RING, 4DG110.0 24326-001100 294,000
025 BOLT, M10X 25 PLATED 26116-100252 24,000
026 SHAFT ASSY, DRIVEN 1B1768-14200 5,207,000
027 COLLAR, DRIVEN SHAFT 1B1657-14190 159,000
028 SHAFT, DRIVEN 1B1768-14210 4,899,000
029 PIPE, OIL 45 195505-15250-1
030 BOLT, M12X30 1A6770-85920 48,000
031 RING, 90 22252-000900 151,000
032 PLUG, 10 23491-100002
033 BEARING, BALL 6308UU 24104-063084V 334,000
034 O-RING, 1AP12.0 24311-000120 20,000
035 O-RING, 1AS18.0 24341-000180 27,000
036 OIL SEAL SC50729 24411-507209 65,000
037 SPROCKET, 11 1B1768-14700 1,271,000
038 SPROCKET, 13 1B1768-14710 2,595,000
039 CHAIN, 100X36L 1B1659-14730 3,369,000
040 SHAFT, FINAL 1B1768-14810 1,973,000
041 NUT, M36R 1B1657-14850 142,000
042 SEAL, DUO CONE 1B1768-14900 399,000
043 CASE, FINAL 1B1768-15120 1,170,000
044 RING, 40 22242-000400 28,000
045 RING, 100 22252-001000 184,000
046 O-RING, 1AG110.0 24321-001100 72,000
047 O-RING, 1AG115.0 24321-001150 121,000
048 BOLT, M10X 25 PLATED 26106-100252 24,000
049 BOLT, M10X 25 PLATED 26106-100252 24,000

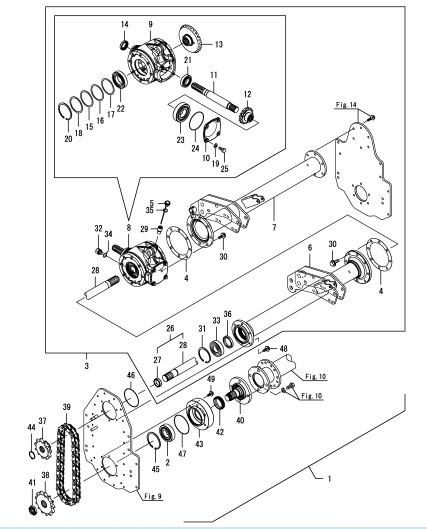

Truyền động - 2000

Truyền động - 2000
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 TRANSMISSION ASSY 1B1770-13000
2 BEARING, 6309G3C3 105400-02300 1,232,000
3 BOX UNIT, GEAR 1B1770-14050
4 GASKET, GEAR BOX 1B1768-13120 157,000
5 PLUG, OIL 195450-13171 455,000
6 FRAME ASSY, MAIN L 1B1770-13400
7 FRAME ASSY, MAIN R 1B1770-13600
8 GEARBOX ASSY 1B1768-14100
9 HOUSING, GEAR 1B1768-13110 6,584,000
010 COVER, GEAR BOX 1B1768-13150
011 PINION, SHAFT 1B1768-14110 3,455,000
012 GEAR, BEVEL 14 1B1768-14130 4,127,000
013 GEAR, BEVEL 27 1B1768-14150 6,430,000
014 SEAL, TC355511 1B1768-14170 85,000
015 SHIM, 0.5 1B1657-14260 27,000
016 SHIM, 0.3 1B1657-14270 35,000
017 SHIM, 0.2 1B1657-14280 35,000
018 SHIM, 1.0 1B1657-14290 44,000
019 WASHER, SPRING 10 22217-100000 16,000
020 RING, 100 22252-001000 184,000
021 BEARING, BALL 6207 24101-062074V 119,000
022 BEARING, BALL 6211 24101-062114 525,000
023 BEARING, BALL 6310 24101-063104
024 O-RING, 4DG110.0 24326-001100 294,000
025 BOLT, M10X 25 PLATED 26116-100252 24,000
026 SHAFT ASSY, DRIVEN 1B1770-14200 6,304,000
027 COLLAR, DRIVEN SHAFT 1B1657-14190 159,000
028 SHAFT, DRIVEN 1B1770-14210 6,006,000
029 PIPE, OIL 45 195505-15250-1
030 BOLT, M12X30 1A6770-85920 48,000
031 RING, 90 22252-000900 151,000
032 PLUG, 10 23491-100002
033 BEARING, BALL 6308UU 24104-063084V 334,000
034 O-RING, 1AP12.0 24311-000120 20,000
035 O-RING, 1AS18.0 24341-000180 27,000
036 OIL SEAL SC50729 24411-507209 65,000
037 SPROCKET, 11 1B1768-14700 1,271,000
038 SPROCKET, 13 1B1768-14710 2,595,000
039 CHAIN, 100X36L 1B1659-14730 3,369,000
040 SHAFT, FINAL 1B1768-14810 1,973,000
041 NUT, M36R 1B1657-14850 142,000
042 SEAL, DUO CONE 1B1768-14900 399,000
043 CASE, FINAL 1B1768-15120 1,170,000
044 RING, 40 22242-000400 28,000
045 RING, 100 22252-001000 240,000
046 O-RING, 1AG110.0 24321-001100 72,000
047 O-RING, 1AG115.0 24321-001150 121,000
048 BOLT, M10X 25 PLATED 26106-100252 24,000

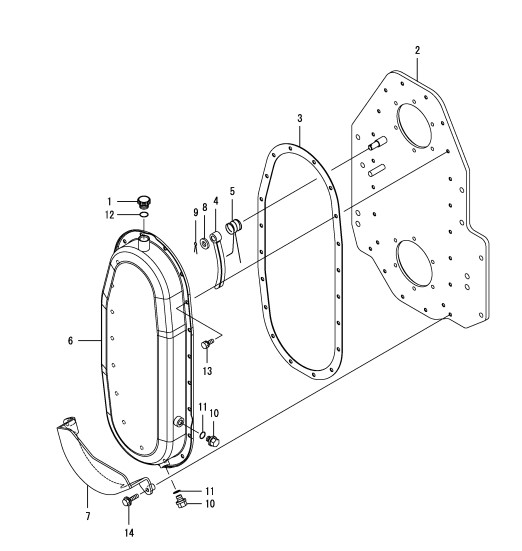

Xích tải

Xích tải
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PLUG, OIL 195230-12190 20,000
2 PLATE ASSY, CHAIN 1B1768-15100
3 GASKET, CASE COVER 1B1657-15180 285,000
4 TENSIONER ASSY 1B1657-15210 202,000
5 SPRING, TENSION 1B1657-15280 60,000
6 COVER ASSY, CHAIN 1B1768-15300 1,980,000
7 PROTECTOR ASSY 1B1768-15700
8 WASHER, 12 22137-120000 16,000
9 COTTER PIN 3.2X25 22411-320250
010 PLUG, 12 23491-120002 240,000
011 O-RING, 1AP14.0 24311-000140 20,000
012 O-RING, 1AS18.0 24341-000180 27,000
013 BOLT, M8X 16 26013-080162 16,000
014 BOLT, M8X 30 PLATED 26106-080302 20,000

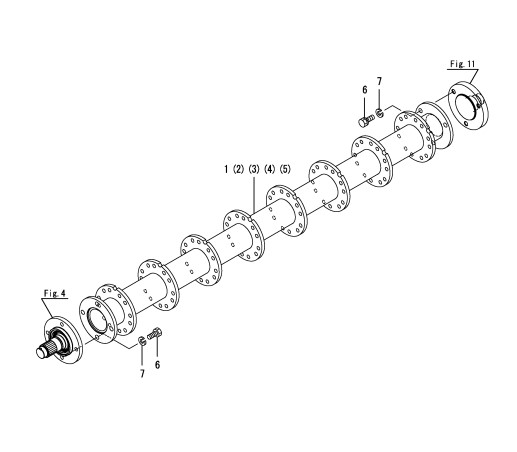

Trục rotor

Trục rotor
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SHAFT ASSY, ROTOR 1B1766-17100
2 SHAFT ASSY, ROTOR 1B1767-17100
3 SHAFT ASSY, ROTOR 1B1768-17100 16,633,000
4 SHAFT ASSY, ROTOR 1B1769-17100
5 SHAFT ASSY, ROTOR 1B1770-17100
6 BOLT, M14X30 10.9 1E6A10-73420 32,000
7 WASHER, SPRING 14 22217-140000 16,000

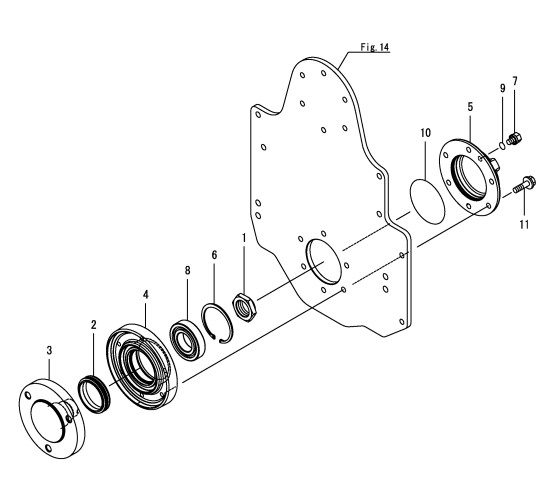

Trục rotor - phải

Trục rotor - phải
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 NUT, M36L 1B1657-14860 175,000
2 SEAL, DUO CONE 1B1768-14900 399,000
3 SHAFT, END 1B1768-17510 1,386,000
4 CASE, BEARING R 1B1768-19750 1,059,000
5 PROTECTOR, R 1B1657-19820-1 680,000
6 RING, 80 22252-000800 120,000
7 PLUG, 10 23491-100002
8 BEARING, BALL 6208 24101-062084V 152,000
9 O-RING, 1AP12.0 24311-000120 20,000
010 O-RING, 1AG95.0 24321-000950 57,000
011 BOLT, M10X 30 PLATED 26106-100302 24,000

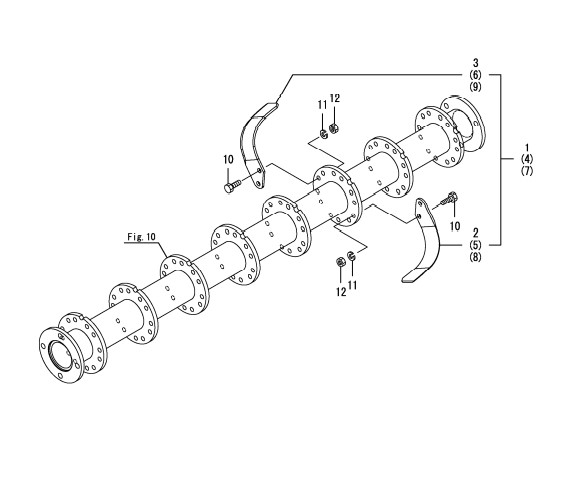

Lưỡi cắt

Lưỡi cắt
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 BLADE ASSY, 48 1B1657-18160
2 ROTARY-BLADE, L 1B1657-18580 164,000
3 ROTARY-BLADE, R 1B1657-18590 164,000
4 BLADE ASSY, 54 1B1659-18160 9,370,000
5 ROTARY-BLADE, L 1B1657-18580 164,000
6 ROTARY-BLADE, R 1B1657-18590 164,000
7 BLADE ASSY, 60 1B1770-18160
8 ROTARY-BLADE, L 1B1657-18580 164,000
9 ROTARY-BLADE, R 1B1657-18590 164,000
010 BOLT, 12X35 1B1617-18880
011 WASHER, SPRING 12 22217-120000 16,000
012 NUT, M12 26606-120002 20,000

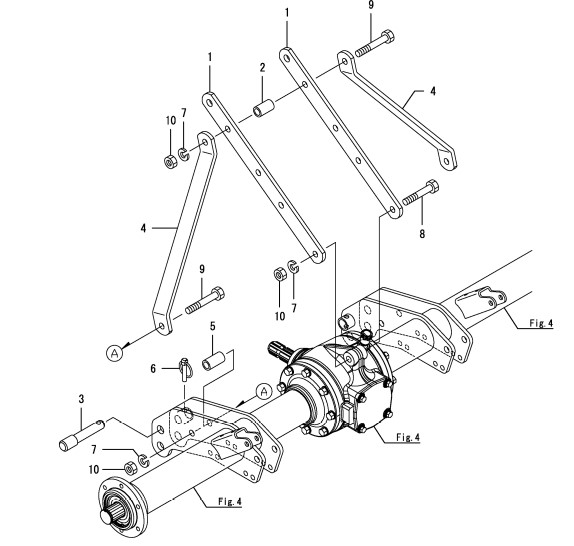

Cánh tay trên

Cánh tay trên
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 MAST 1B1768-19110
2 PIPE 1B1657-19130-1
3 PIN, LOWER LINK 1B1657-19310 206,000
4 STAY, ARM 1B1768-19510
5 PIPE 1B1657-19520-1
6 PIN ASSY,BALL SOCKET 794130-71410 77,000
7 WASHER, SPRING 16 22217-160000 16,000
8 BOLT M16X 90 PLATED 26116-160902
9 BOLT, M16X110 PLATED 26116-161102
010 NUT, M16 26716-160002 28,000

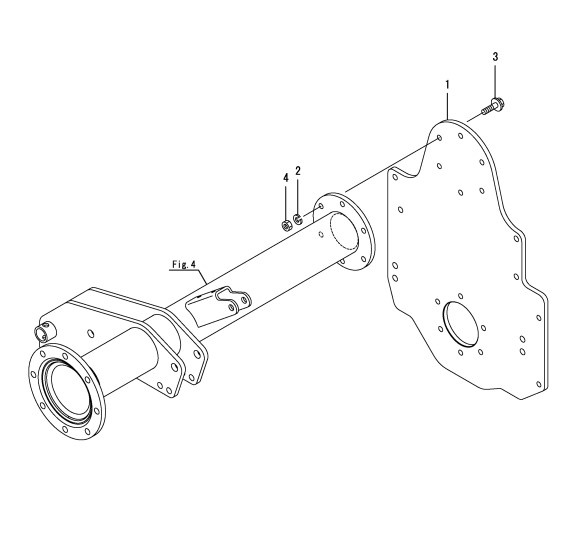

Hỗ trợ

Hỗ trợ
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SUPPORT, SIDE 1B1768-19710
2 WASHER, SPRING 10 22217-100000 16,000
3 BOLT, M10X 35 PLATED 26106-100352 24,000
4 NUT, M10 26716-100002 20,000

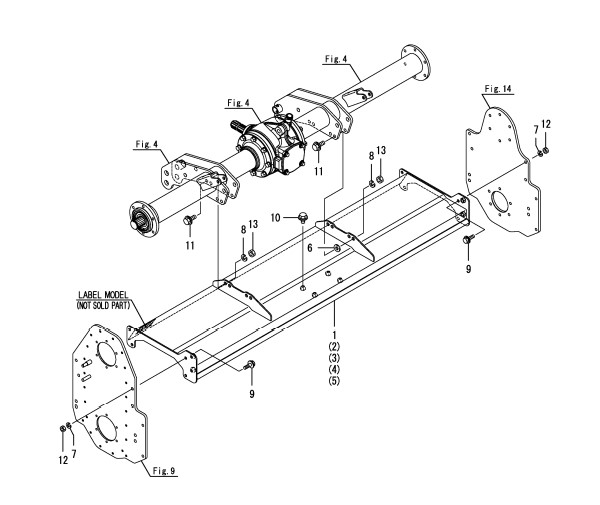

Vỏ quay

Vỏ quay
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 COVER ASSY, ROTARY M 1B1766-20050
2 COVER ASSY, ROTARY M 1B1767-20050
3 COVER ASSY, ROTARY M 1B1768-20050
4 COVER ASSY, ROTARY M 1B1769-20050
5 COVER ASSY, ROTARY M 1B1770-20050
6 WASHER, 12 22137-120000 16,000
7 WASHER, SPRING 10 22217-100000 16,000
8 WASHER, SPRING 12 22217-120000 16,000
9 BOLT, M10X 30 PLATED 26106-100302 24,000
010 BOLT, M12X 16 PLATED 26106-120162
011 BOLT, M12X 30 PLATED 26106-120302 61,000
012 NUT, M10 26716-100002 20,000
013 NUT, M12 26716-120002 15,000

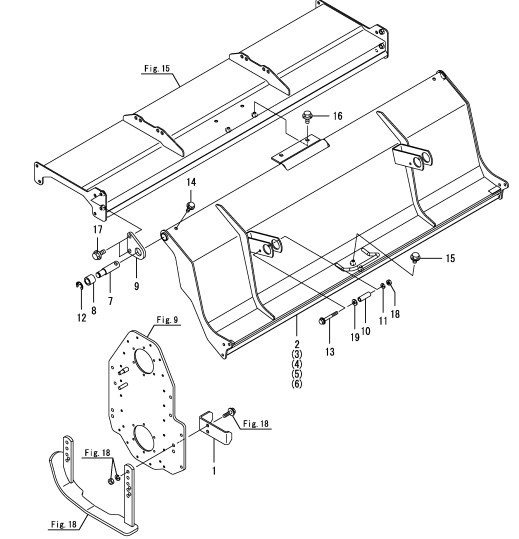

Vỏ sau

Vỏ sau
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 PLATE 1B1657-20820
2 COVER ASSY, REAR 1B1766-21100
3 COVER ASSY, REAR 1B1767-21100
4 COVER ASSY, REAR 1B1768-21100
5 COVER ASSY, REAR 1B1769-21100
6 COVER ASSY, REAR 1B1770-21100
7 PIN, HINGE 1B1657-21350
8 COLLAR 1B1657-21360
9 GUIDE 1B1768-21720
010 PIPE 1B1657-22540
011 WASHER, SPRING 8 22217-080000 24,000
012 RING, 22273-000150
013 BOLT, M8X 65 PLATED 26106-080652 24,000
014 BOLT, M10X 30 PLATED 26106-100302 24,000
015 BOLT, M12X 16 PLATED 26106-120162
016 BOLT, M12X 20 PLATED 26106-120202 68,000
017 BOLT, M12X 30 PLATED 26106-120302 61,000
018 NUT, M8 26716-080002 20,000
019 WASHER, 8 22137-080000 16,000

Móc kéo sau toa xe

Móc kéo sau toa xe
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SUPPORT, ROD 1B1768-22650
2 ROD ASSY, HANGER 1B1768-22700
3 STAY, UPPER 1B1768-22730
4 STAY, LOWER 1B1768-22740
5 SPRING, L 1B1768-22750
6 SPRING, S 1B1768-22760
7 PIN ASSY,SNAP 1B1768-22800 89,000
8 PIN, SNAP 12 22372-120000 20,000
9 PIN, H12X 50 22486-120500

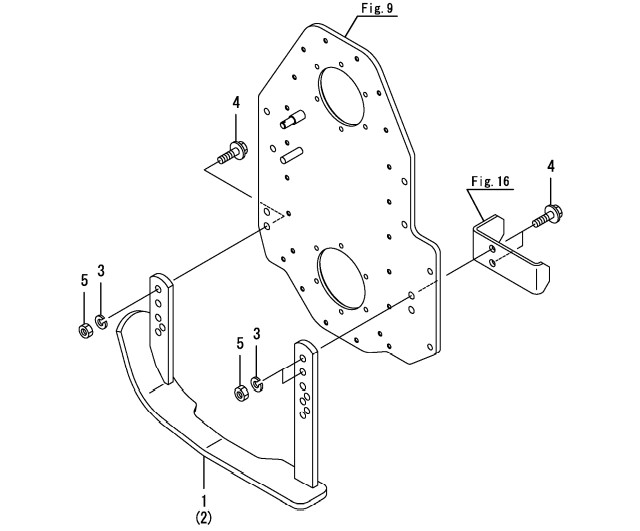

Tấm trượt

Tấm trượt
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 SLED ASSY, L 1B1768-25200
2 SLED ASSY, R 1B1768-25300
3 WASHER, SPRING 12 22217-120000 16,000
4 BOLT, M12X 40 PLATED 26106-120402 22,000
5 NUT, M12 26716-120002 15,000

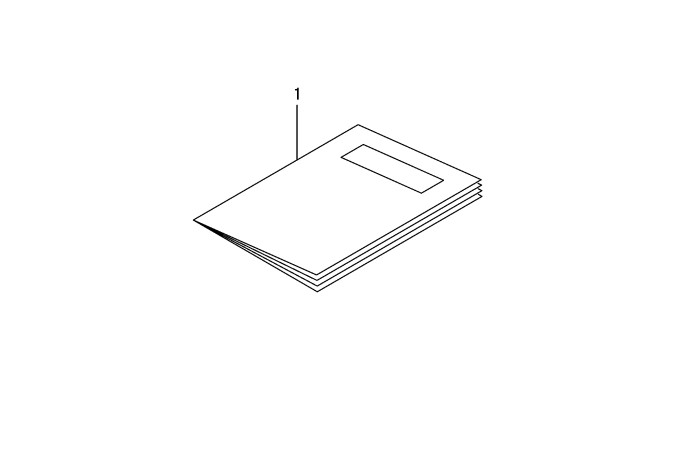

tài liệu

tài liệu
STT Tên sản phẩm Mã số Giá bán Đặt hàng
1 OPERATION MANUAL 0A051-M00190
Chọn mua sản phẩm
: ...
: ...
: ...
:
messenger
zalo
